Capacitor, Ignition: Removal: 2.4L

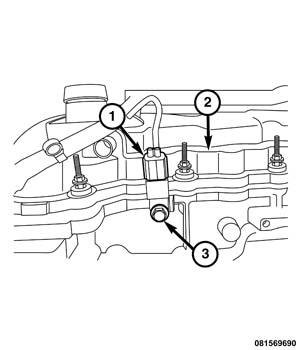

Fig 1: Connector, Ignition Capacitor & Mounting Bolt

Courtesy of CHRYSLER GROUP, LLC

1. Disconnect and isolate negative battery cable.
2. Remove electrical connector (1).
3. Remove mounting bolt (3) and ignition capacitor (1) from the front of the cylinder head.
