P0325-Knock Sensor 1 Circuit: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

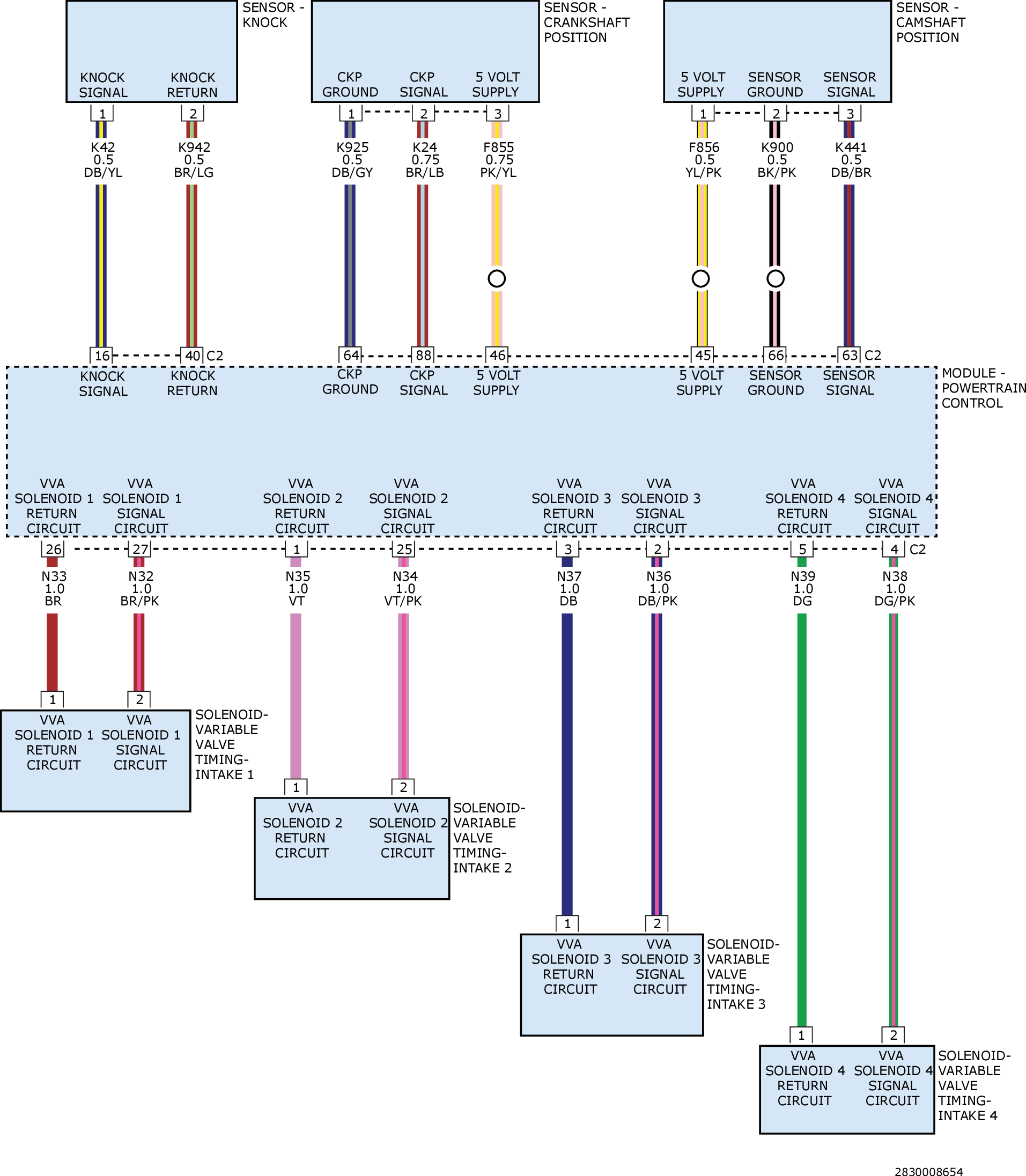

Fig 1: Crankshaft & Camshaft Position Sensors, Knock Sensor & VVT Intake Solenoids Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
