P0685-ASD/Main Control Circuit: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

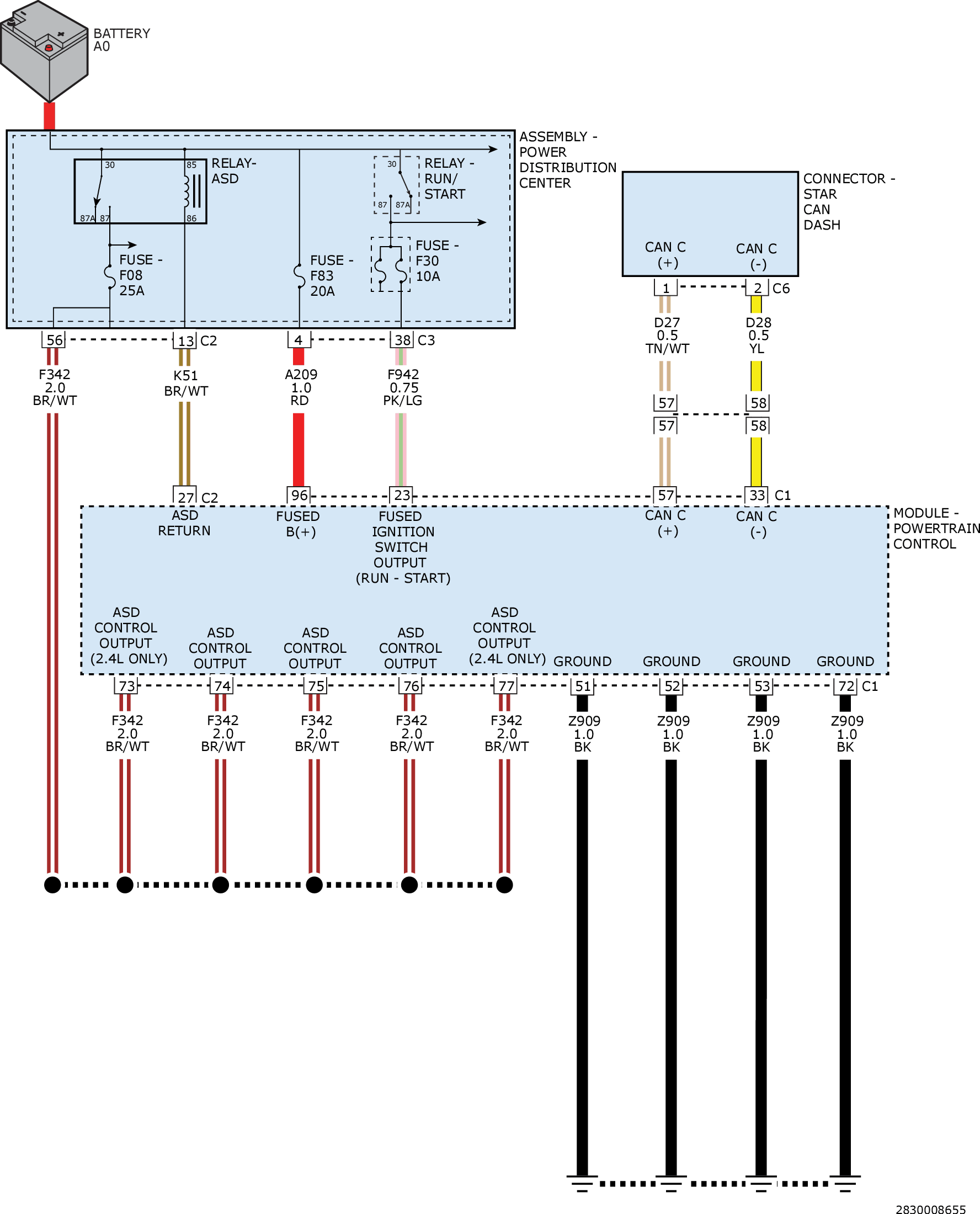

Fig 1: ASD/Main Control Circuit Diagram
GC0161412Courtesy of CHRYSLER GROUP, LLC
