Valve, Purge Control: Removal: 3.2L

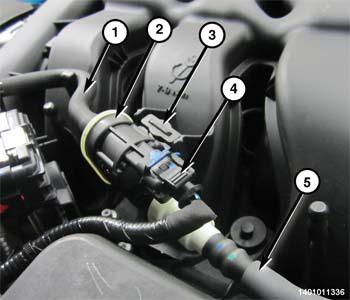

Fig 1: Purge Solenoid, Vapor Line, Quick-Connect Fitting & Connector

Courtesy of CHRYSLER GROUP, LLC

The duty cycle purge solenoid (2) is located in the engine compartment mounted on the intake manifold.

1. Carefully pull the solenoid assembly straight up from the tongue-type bracket without bending the two vapor lines.
2. Disconnect electrical wiring connector (4) at solenoid.
3. Disconnect vapor line quick-connect fitting (5) at solenoid.
4. Disconnect vapor line (1) at the at the throttle body.
