948TE Automatic Transmission (Service Information): Disassembly: Disassembly

The 948TE automatic transmission can be overhauled if the vehicle is beyond it's warranty coverage. Verify that the vehicle is no longer covered by warranty before proceeding with this procedure. A clean work area is necessary to assure a properly functioning transmission after the overhaul procedures are completed. Special tools have been developed and are required to disassemble this transmission. Acquire all of the special tools before starting this procedure.

Before disassembling the transmission, wash the transmission with a suitable solvent and a siphon pressure washer to remove oily grime and loose dirt. Place the transmission on a clean work surface with ample fluid drainage or absorbency.

Fig 1: Wire Connector Socket Clip

Courtesy of CHRYSLER GROUP, LLC

1. Remove the clip holding the wire connector socket in the valve body cover pan.
   Fig 2: Valve Body Cover Pan Bolts

   Courtesy of CHRYSLER GROUP, LLC
2. Remove the valve body cover pan bolts (1).
3. Remove the valve body cover pan from the transmission.
   Fig 3: Valve Body Bolts

   Courtesy of CHRYSLER GROUP, LLC
4. Remove the valve body bolts (1).
5. Using a suitable prying tool, pry the valve body away from the adapter tubes.
   Fig 4: Fluid Pressure Transducer Wire Harness Connector

   Courtesy of CHRYSLER GROUP, LLC
6. Turn the valve body over to gain access to wire harness connectors.

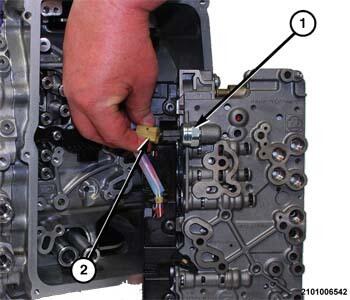

7. Release the lock (2) on the fluid pressure transducer wire connector and separate the wire connector (2) from the fluid pressure transducer (1).

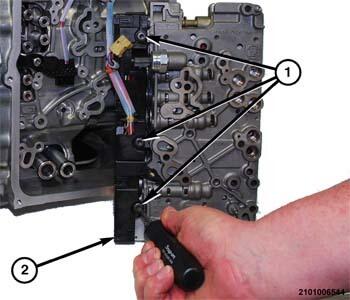

   Fig 5: Removing/Installing Wire Harness Connector At Valve Body Solenoids

   Courtesy of CHRYSLER GROUP, LLC
8. Remove the bolts (1) holding the wire harness connector to the valve body and solenoids.
9. Using a suitable prying tool, Separate the wire harness connector (2) from the solenoids.
10. Separate the valve body from the transmission.
    NOTE:

    If the valve body is to be reused without disassembling it, store the valve body in a clean area until it is installed.

    Fig 6: Removing/Installing Transmission Range Sensor (TRS) Screw

    Courtesy of CHRYSLER GROUP, LLC
11. Remove the Transmission Range Sensor (TRS) screw (1).
    Fig 7: Removing/Installing Transmission Range Sensor

    Courtesy of CHRYSLER GROUP, LLC
12. Separate the TRS (1) from the transmission with the wire harness connected.
    Fig 8: Removing/Installing Speed Sensor Screw

    Courtesy of CHRYSLER GROUP, LLC
13. Remove the speed sensor screw (1).
    Fig 9: Removing/Installing Speed Sensor

    Courtesy of CHRYSLER GROUP, LLC
14. Separate the speed sensor (1) from the transmission with the wire harness connected.
    Fig 10: Fluid Adapter Tubes & O-Ring Seals

    Courtesy of CHRYSLER GROUP, LLC
15. Using suitable pliers, remove the fluid adapter tubes (1) from the transmission.
    Fig 11: Bellhousing To Transmission Housing Bolts

    Courtesy of CHRYSLER GROUP, LLC
16. From around the perimeter of the transmission, remove the bellhousing bolts (1) holding the bellhousing to the transmission housing.
    Fig 12: Bellhousing To Output Gear Support Bolts

    Courtesy of CHRYSLER GROUP, LLC
17. Remove the bellhousing bolts (1) holding the bellhousing to the output gear support.
18. Using wooden blocks to stabilize the transmission on the work surface, position the transmission on the bench with the bellhousing facing upward.
19. Using a suitable pry-bar in the pry point locations, pry upward to dislodge the bellhousing from the transmission housing.
    Fig 13: Removing/Installing Bellhousing At Transmission Housing

    Courtesy of CHRYSLER GROUP, LLC
20. Lift the bellhousing (1) upward and separate the assembly from the transmission housing (2).
    Fig 14: Port Seal

    Courtesy of CHRYSLER GROUP, LLC
21. Remove the seal (1) from the port in the transmission housing.
    Fig 15: Sealing Surface Of Transmission Housing

    Courtesy of CHRYSLER GROUP, LLC
22. Separate the gasket (1) from the sealing surface of the transmission housing (2).
    Fig 16: Removing/Installing Differential Assembly

    Courtesy of CHRYSLER GROUP, LLC
23. Remove the differential assembly (1) from the transmission housing.
    Fig 17: Removing/Installing E-Clutch At E-Clutch Hub

    Courtesy of CHRYSLER GROUP, LLC
24. Separate the E-clutch from the E-clutch hub and shaft (2).
    Fig 18: Removing/Installing Thrust Bearing At E-Clutch Hub

    Courtesy of CHRYSLER GROUP, LLC
25. Separate the thrust bearing (1) from the E-clutch (2) hub.
    Fig 19: E-Clutch Hub And Shaft

    Courtesy of CHRYSLER GROUP, LLC
26. Separate the E-clutch hub and shaft (1) from the output gear support (2).
    Fig 20: Output Gear Support

    Courtesy of CHRYSLER GROUP, LLC
27. Separate the output gear support (1) from the gear 4 planetary pinion carrier (2).

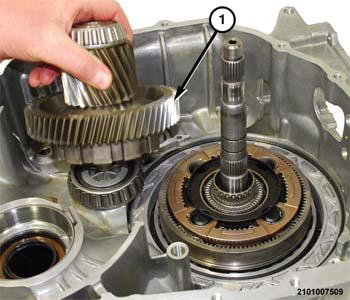

    Fig 21: Removing/Installing Transfer Gear

    Courtesy of CHRYSLER GROUP, LLC
28. Remove the transfer gear from the transmission housing (1).
    Fig 22: Roller Type Thrust Bearing

    Courtesy of CHRYSLER GROUP, LLC
29. Separate the roller type thrust bearing (1) from the sun gear 3 and 4 and Dog Clutch-F (2).
    Fig 23: Removing/Installing Sun Gear 3, 4 And Dog Clutch-F At Gear 4 Planetary Pinion Carrier

    Courtesy of CHRYSLER GROUP, LLC
30. Separate the sun gear 3 and 4 and Dog Clutch-F (1) from the gear 4 planetary pinion carrier.
    Fig 24: Gear 4 Planetary Pinion Carrier

    Courtesy of CHRYSLER GROUP, LLC
31. Separate the gear 4 planetary pinion carrier (1) from the annulus gear 4.
    Fig 25: Annulus Gear 4

    Courtesy of CHRYSLER GROUP, LLC
32. Separate the annulus gear 4 from the annulus gear 3 (2).
    Fig 26: Removing Transfer Gear Bearing Cone

    Courtesy of CHRYSLER GROUP, LLC
33. Using Puller Press (special tool #C-293-PA, Puller, Press) (1), Adapter Blocks (special tool #9738, Blocks, Adapter) (3) and a suitable socket as a plug (2), remove the transfer gear bearing cone from the transmission housing.
    Fig 27: Thrust Bearing & Annulus Gear 1 Planetary Hub

    Courtesy of CHRYSLER GROUP, LLC
34. Separate the thrust bearing (1) from the annulus gear 1 planetary hub (2).
    Fig 28: Annulus Gear 1 Planetary Hub & Carrier Gear 1 And 2

    Courtesy of CHRYSLER GROUP, LLC
35. Separate the annulus gear 1 planetary hub (1) from the carrier gear 1&2 (2).
    Fig 29: Thrust Bearing & Annulus Gear 1 Planetary Hub

    Courtesy of CHRYSLER GROUP, LLC
36. Separate the thrust bearing (1) from under the annulus gear 1 planetary hub (2).
    Fig 30: Annulus Gear 3 & Snap-Ring

    Courtesy of CHRYSLER GROUP, LLC
37. Using a suitable screw driver, remove the snap-ring (1) holding the annulus gear 3 (2).
    Fig 31: Snap-Ring & Annulus Gear 3

    Courtesy of CHRYSLER GROUP, LLC
38. Separate the snap-ring from the annulus gear 3 (2).

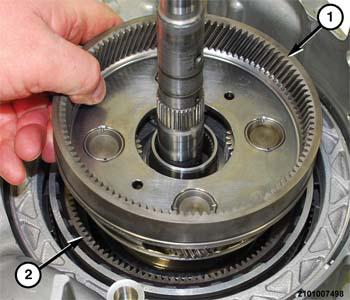

    Fig 32: Annulus Gear 3 & Carrier Gear 1&2

    Courtesy of CHRYSLER GROUP, LLC
39. Separate the annulus gear 3 (1) from the carrier gear 1&2.
    Fig 33: Carrier Gear 1&2 & O-Ring Seal

    Courtesy of CHRYSLER GROUP, LLC
40. Remove the O-ring seal (1) from the carrier gear 1&2.
    Fig 34: Carrier Gear, Annulus Gear & D-Clutch Hub

    Courtesy of CHRYSLER GROUP, LLC

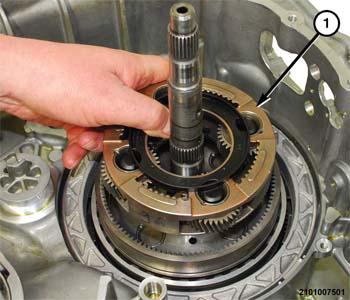

41. Separate the carrier gear 1&2 (1) annulus gear 2, D-clutch hub and input shaft assembly.
42. Position the transmission housing on a suitable arbor pressure using wooden blocks for support.
    Fig 35: Gaining Access To Snap Ring-Ring & Groove

    Courtesy of CHRYSLER GROUP, LLC
43. Using Tool (special tool #8901A, Pressing Tool) (with pressure scale removed (1) and legs (special tool #10428, Adapter, Pressing Tool), Compress the bellville spring to gain access to the snap ring-ring (3) holding the D-clutch piston retainer (2) into the transmission housing (4).

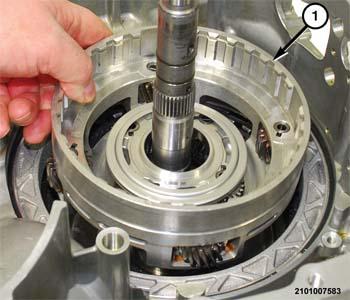

    Fig 36: Prying D-Clutch Piston Retainer Out Of Transmission Housing

    Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    The O-ring seal on the D-clutch piston retainer will hang up in the snap-ring groove during removal and will need to be pried out of the transmission housing.

44. Using a suitable pry-bar (1) vise-grip pliers (2) and a brass drift (3) coupled together, pry the D-clutch piston retainer (4) upward and out of the transmission housing.
    Fig 37: D-Clutch Piston Retainer

    Courtesy of CHRYSLER GROUP, LLC
45. Separate the D-clutch piston retainer (1) from the transmission housing.
    Fig 38: D-Clutch Piston & Retainer

    Courtesy of CHRYSLER GROUP, LLC
46. Remove the D-clutch piston from the retainer.

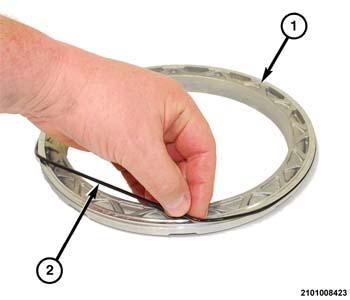

    Fig 39: D-Clutch Piston, Inner & Outer Seals

    Courtesy of CHRYSLER GROUP, LLC
47. Remove the inner (1) and outer (2) lip seals from the D-clutch piston.
    Fig 40: D-Clutch Piston Retainer & O-Ring Seal

    Courtesy of CHRYSLER GROUP, LLC
48. Remove the O-ring seal from the D-clutch piston retainer.
    Fig 41: Removing/Installing Bellville Spring

    Courtesy of CHRYSLER GROUP, LLC
49. Separate the bellville spring from the transmission housing.

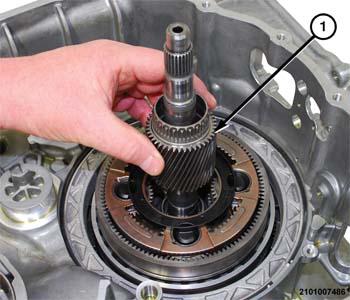

    Fig 42: Annulus Gear 2, D & C-Clutch Hub And Input Shaft Assembly

    Courtesy of CHRYSLER GROUP, LLC
50. Separate the annulus gear 2, D and C-clutch hub and input shaft assembly (1) from the transmission housing.
51. Remove the annulus gear 2, D and C-clutch hub from the input shaft and B-clutch.
    Fig 43: Remove/Install Input Shaft Seal-Rings

    Courtesy of CHRYSLER GROUP, LLC
52. Remove the seal-rings (1) from the lands (2) on the input shaft (3).
    Fig 44: Input Shaft/Dog Clutch A, B-Clutch Hub & Snap-Ring

    Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Dog clutch A is permanently attached to the input shaft and cannot be disassemble. If the dog clutch A fails an air test, replace the input shaft.

53. Using a suitable snap-ring pliers (3), remove the snap-ring (2) holding the input shaft to the B-clutch (1) hub.
54. Separate the input shaft/dog clutch A from the B-clutch (1) hub.
    Fig 45: Annulus Gear 2, D And C-Clutch Hub/B-Clutch Retainer

    Courtesy of CHRYSLER GROUP, LLC
55. Place the annulus gear 2, D and C-clutch hub on tool (special tool #9611, Plug, Differential End) to hold the sun gear in position.
    Fig 46: Remove/Install Snap-Ring

    Courtesy of CHRYSLER GROUP, LLC
56. Using a suitable snap-ring pliers (1), remove the snap-ring (2) holding the sun gear 1 to the annulus gear 2, D and C-clutch hub.
    Fig 47: Annulus Gear 2, D And C-Clutch Hub (3) & Sun Gear 1

    Courtesy of CHRYSLER GROUP, LLC
57. Turn the annulus gear 2 (2), D and C-clutch hub (3) over and remove the sun gear 1 (1).

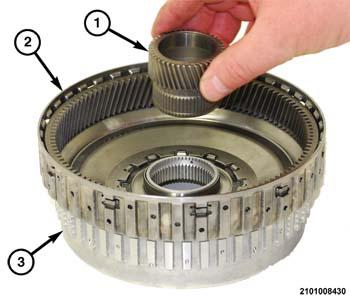

    Fig 48: Annulus Gear 2, D-Clutch Hub & C-Clutch Hub

    Courtesy of CHRYSLER GROUP, LLC
58. Separate the Annulus gear 2, D-clutch hub (1) from the C-clutch hub.
    Fig 49: Thrust Bearing & C-Clutch Hub

    Courtesy of CHRYSLER GROUP, LLC
59. Separate the thrust bearing (1) from the C-clutch hub (2).
    Fig 50: Thrust Bearing & Input Shaft Rear Support

    Courtesy of CHRYSLER GROUP, LLC
60. Remove the thrust bearing (1) from the input shaft rear support.
    Fig 51: Removing/Installing Input Shaft Rear Support Selective Thrust Washer

    Courtesy of CHRYSLER GROUP, LLC

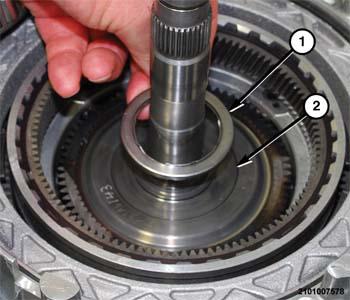

61. Remove the input shaft rear support selective thrust washer (1).
    Fig 52: Removing D-Clutch Friction Discs & Steel Plates From Transmission Housing

    Courtesy of CHRYSLER GROUP, LLC
62. Separate the D-clutch friction discs and steel plates (1) from the transmission housing.

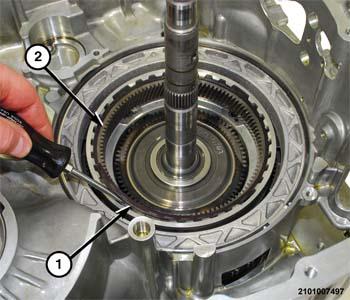

    Fig 53: Removing Snap-Ring

    Courtesy of CHRYSLER GROUP, LLC
63. Using two suitable screw drivers, lift (2) the snap-ring (1) and pry it inward (3) and out of from the groove in the transmission housing.
    Fig 54: Removing C-Clutch Friction Discs & Steel Plates From Transmission Housing

    Courtesy of CHRYSLER GROUP, LLC
64. Separate the C-clutch friction discs and steel plates (1) from the transmission housing.
    Fig 55: C-Clutch Bellville Spring & Special Tool

    Courtesy of CHRYSLER GROUP, LLC

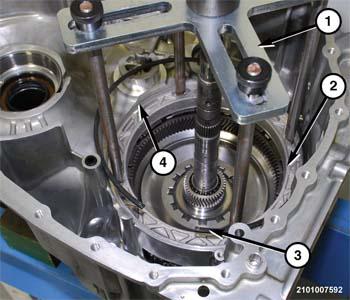

65. Place the tool (special tool #10504, Compressor, Spring) (1) over the C-clutch bellville spring at the bottom of the transmission housing.
    Fig 56: C-Clutch Bellville Spring & Special Tools

    Courtesy of CHRYSLER GROUP, LLC
66. Place tool (special tool #8228, Installer, Bearing) (3) over the input shaft support (tool 8901 with 10428 legs can also be used), compress the bellville spring to gain access to the stepped snap-ring (1).
    Fig 57: Removing/Installing Snap-Ring

    Courtesy of CHRYSLER GROUP, LLC
67. Using a suitable screw driver, remove the snap-ring (1) holding the C-clutch bellville spring in the transmission housing.
    Fig 58: C-Clutch Bellville Spring & C-Clutch Piston

    Courtesy of CHRYSLER GROUP, LLC
68. Separate the C-clutch bellville spring (1) from the C-clutch piston (2).
    Fig 59: Removing/Installing C-Clutch Piston

    Courtesy of CHRYSLER GROUP, LLC
69. Using a suitable pliers (2), remove the C-clutch piston (1) from the transmission housing.
    Fig 60: C-Clutch Piston & Seals

    Courtesy of CHRYSLER GROUP, LLC
70. If overhaul is being performed, remove inner (1) and outer (2) seals from the C-clutch piston.
    Fig 61: Removing/Installing Inner Seal-Rings

    Courtesy of CHRYSLER GROUP, LLC
71. Using a suitable hook tool, remove the inner seal-rings (1) from the input shaft support.
    Fig 62: Removing/Installing Outer Seal-Rings

    Courtesy of CHRYSLER GROUP, LLC
72. Using a suitable hook tool, remove the outer seal-rings (1) from the input shaft support.
    Fig 63: Removing/Installing Split Roller Bearing

    Courtesy of CHRYSLER GROUP, LLC
73. Using a suitable hook tool, remove the split roller bearing (1) from the input shaft support.
