P0440-General EVAP System Failure: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

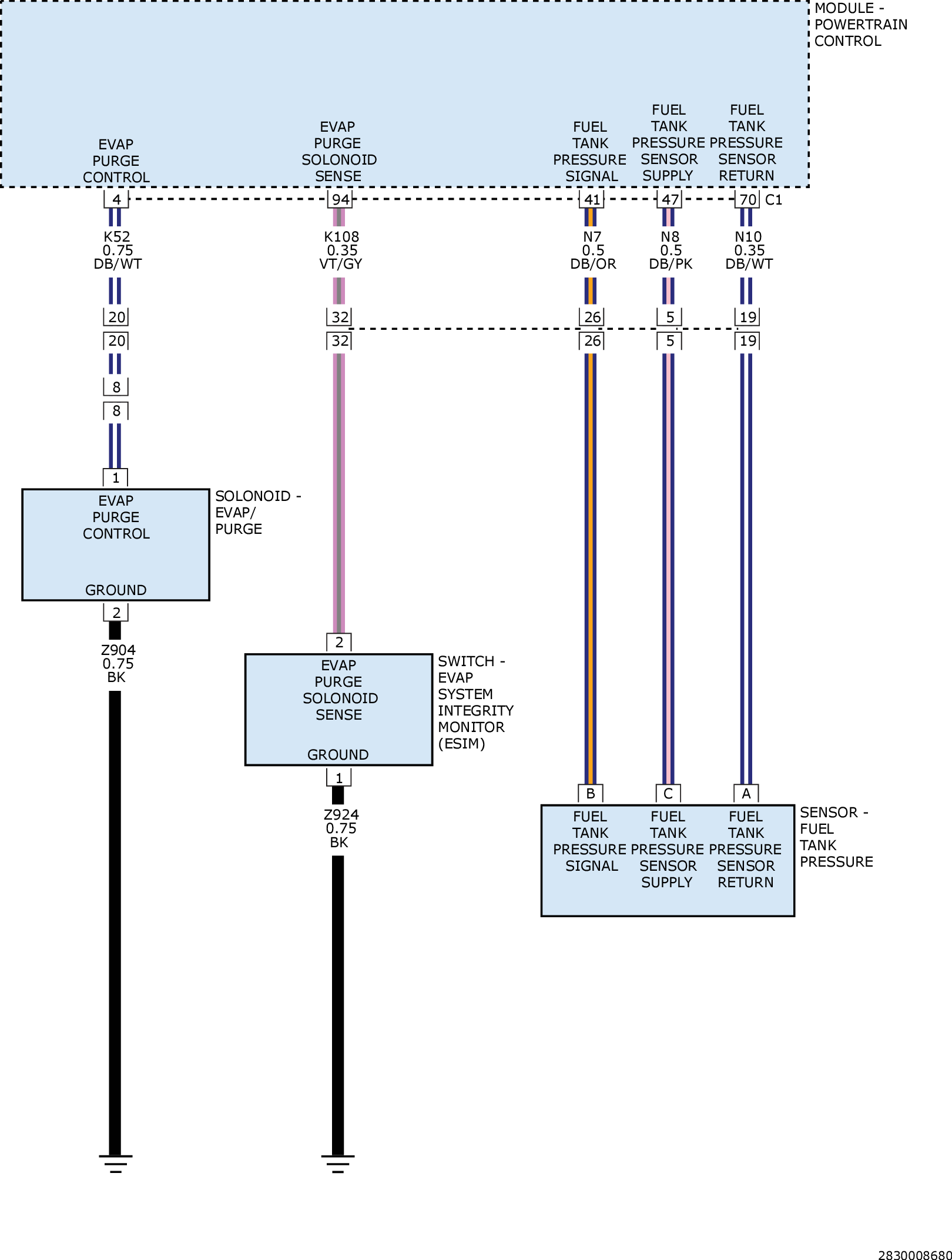

Fig 1: ESIM Switch, Evap/Purge Solenoid & Fuel Tank Pressure Sensor Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
