Isolator, Rear CROSSMEMBER, Differential: Installation: Installation

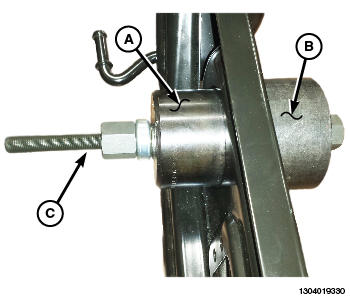

Fig 1: Special Tool #6062A Bearing Cup Puller
GC0158273Courtesy of CHRYSLER GROUP, LLC
NOTE:

Prior to using special tools, lubricate Screw Assembly (C) threads to provide ease of use and promote tool longevity.

NOTE:

When installing thrust bearing, be sure to place hardened side toward bolt head.

  1. Assemble tools over isolator crossmember assembly as shown:
    1. (special tool #6536-A, Installer, Bearing/Seal)
    2. Receiver - 6062A-3 of (special tool #6062A, Puller, Bearing Cup)
    3. Forcing Screw - 8839-1 and 8839-2 also use with bearing. (special tool #8839, Screw Assembly)
  2. While holding Nut from rotating, tighten Screw Assembly (C) using hand tools  , pressing isolator into crossmember. Stop when the isolator bottoms against Remover/Installer, Bushing.
    Fig 2: Bolts & Stabilizer Bar
    GC0146325Courtesy of CHRYSLER GROUP, LLC
  3. Position the stabilizer bar (2) and install the upper and lower stabilizer bar to cradle bolts (1) and tighten to 110 N.m (81 ft. lbs.).
  4. Install the rear differential. Refer to INSTALLATION .
