Engine Cover

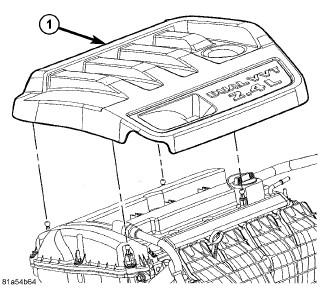

Fig 1: Engine Cover - 2.4L
GC0084921Courtesy of CHRYSLER GROUP, LLC
  1. Position engine cover (1) over mounting studs.
  2. Seat the cover on the rear studs by pushing downwards.
  3. Push downward on the front of the cover to seat the front studs.
