Section 178 (Communication - Non-DTC Based Diagnostics)
›
Diagnosis And Testing
›
No Response From OCM (Occupant Classification Module)
›
Notes
No Response From OCM (Occupant Classification Module): Notes
WARNING:
This page is about a different car, the 2012 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

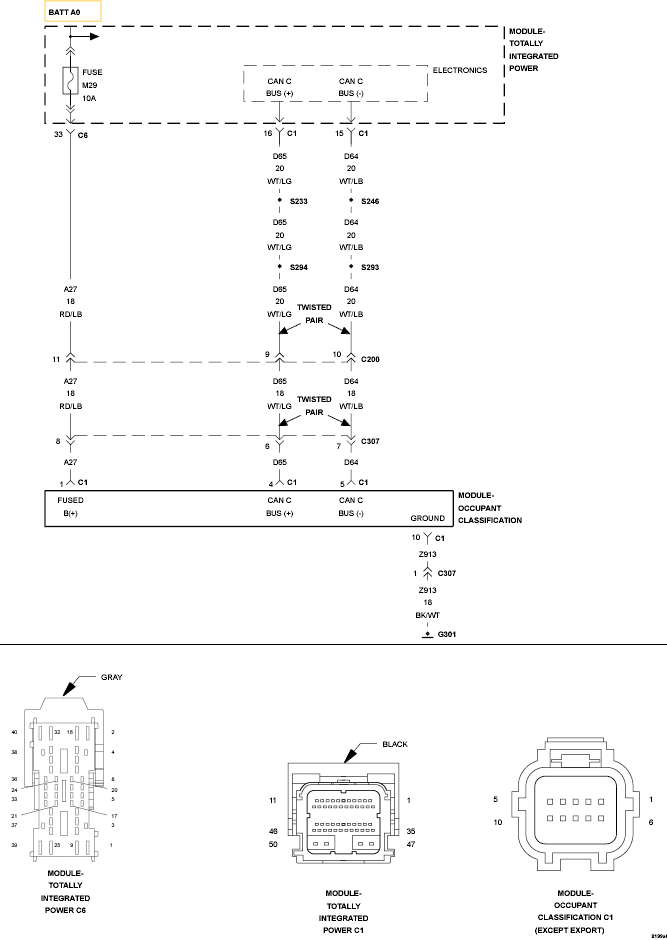

Fig 1: OCM (Occupant Classification Module) Wiring Diagram
Courtesy of CHRYSLER GROUP, LLC
For a complete wiring diagram,
refer to appropriate SYSTEM WIRING DIAGRAMS article
.
