Counter Balance Shaft Timing
WARNING: This page is about a different car, the 2009 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
- Ensure that the engine is at TDC with both camshaft sprocket V6 marks in the 12 o'clock position.

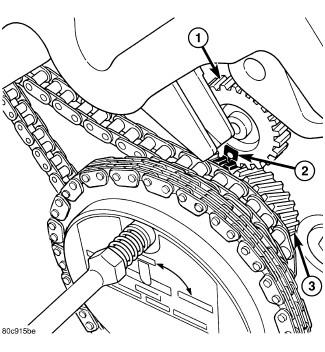

- Look down the left cylinder head chain cavity. The timing dot (2) on the counter balance shaft drive gear should be in the 6 o'clock position.
