Valve Body: Assembly: Assembly

Clean all valve body components with a suitable solvent and blow them dry with regulated 345 kPa (50 psi) compressed shop air. Inspect all valves, pistons, accumulators, and there bores for damage. If any of the surfaces are scored or show evidence of damage, the valve body must be replaced. As the valve body is assembled, lubricate each component with specified transaxle fluid as they are installed. Refer to SPECIFICATIONS .

Fig 1: Inner Valve Body & Accumulator

Courtesy of CHRYSLER GROUP, LLC

1. Install the valve assemblies (8, 9, and 10) and accumulator piston (11) in the inner valve body (1) removed.
   Fig 2: Inner Valve Body, Stopper Plates & Accumulator

   Courtesy of CHRYSLER GROUP, LLC
2. Install the stopper plates to hold the valve assemblies (1) and accumulator piston (3) in the inner valve body (2).

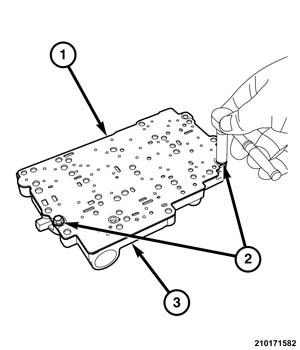

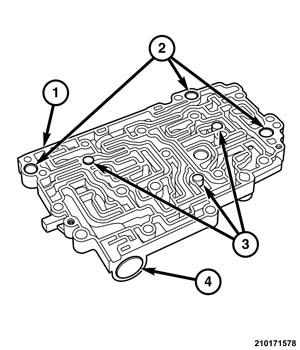

   Fig 3: Inner Valve Body, Damping Valves & Check Valves

   Courtesy of CHRYSLER GROUP, LLC
3. Install three damping valves (2) and three check valves (3) in the inner valve body (1).

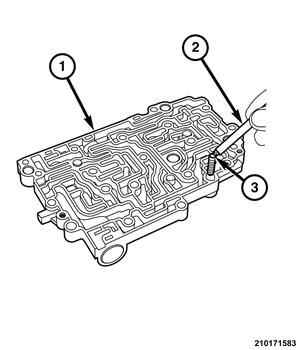

   Fig 4: Inner Valve Body, Steel Check Ball & Spring

   Courtesy of CHRYSLER GROUP, LLC
4. Install the steel check ball and spring (3) into inner valve body (1).
   Fig 5: Inner Valve Body & Separator Plate

   Courtesy of CHRYSLER GROUP, LLC
5. Place the separator plate (1) in position on the inner valve body (2).
   Fig 6: Inner Valve Body, Separator Plate & Bolts

   Courtesy of CHRYSLER GROUP, LLC
6. Install bolts (2) to hold the separator plate (1) to the inner valve body (3). Refer to SPECIFICATIONS .

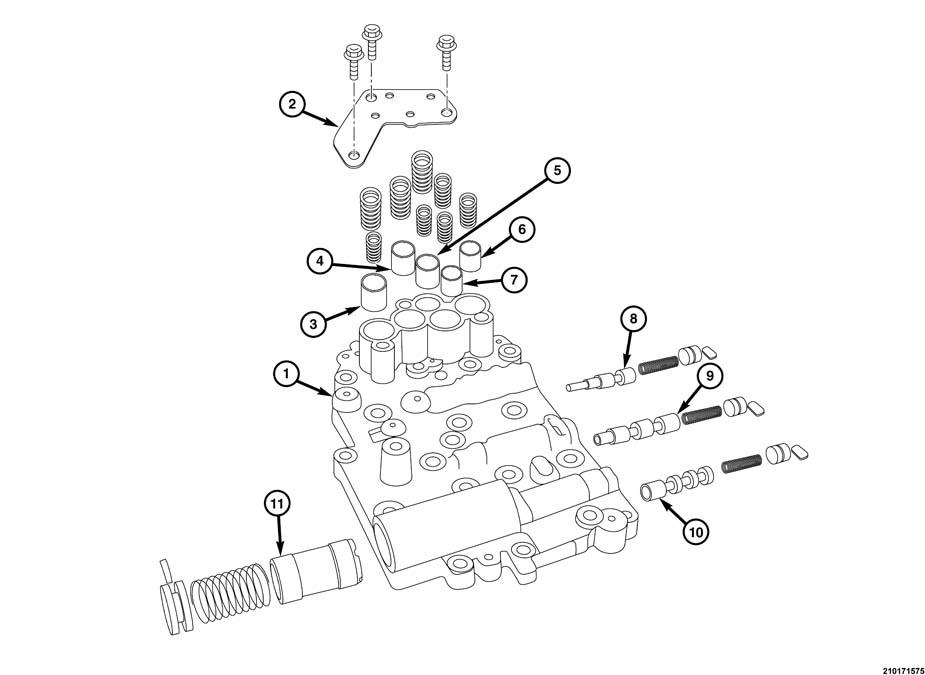

   Fig 7: Inner Valve Body & Accumulator

   Courtesy of CHRYSLER GROUP, LLC

   1= Inner Valve Body

   2= Accumulator Plate

   3= Accumulator 2 (Green and Yellow Springs)

   4= Accumulator 1 (Pink Spring)

   5= Damping Valve (White and White springs)

   6= Accumulator 3 (Pink Spring)

   7= Accumulator 4 (Yellow and Yellow Spring)

   8= OD Fail Safe Valve

   9= 3-5-R Switch Valve

   10= Lock-up Switch Valve

   11= Accumulator Piston

7. Install accumulators (2, 3, 4 and 6) and valves (5, 8, 9 and 10) in the inner valve body (1).

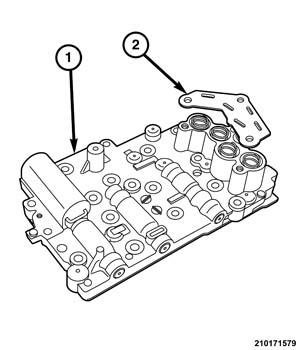

   Fig 8: Inner Valve Body & Accumulator Plate

   Courtesy of CHRYSLER GROUP, LLC
8. Place the accumulator plate (2) in position on the inner valve body (1).

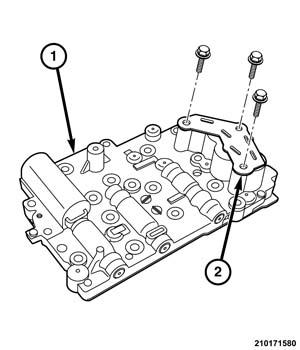

   Fig 9: Inner Valve Body, Accumulator Plate & Bolts

   Courtesy of CHRYSLER GROUP, LLC
9. Install bolts to hold the accumulator plate (2) to the inner valve body (1). Refer to SPECIFICATIONS .

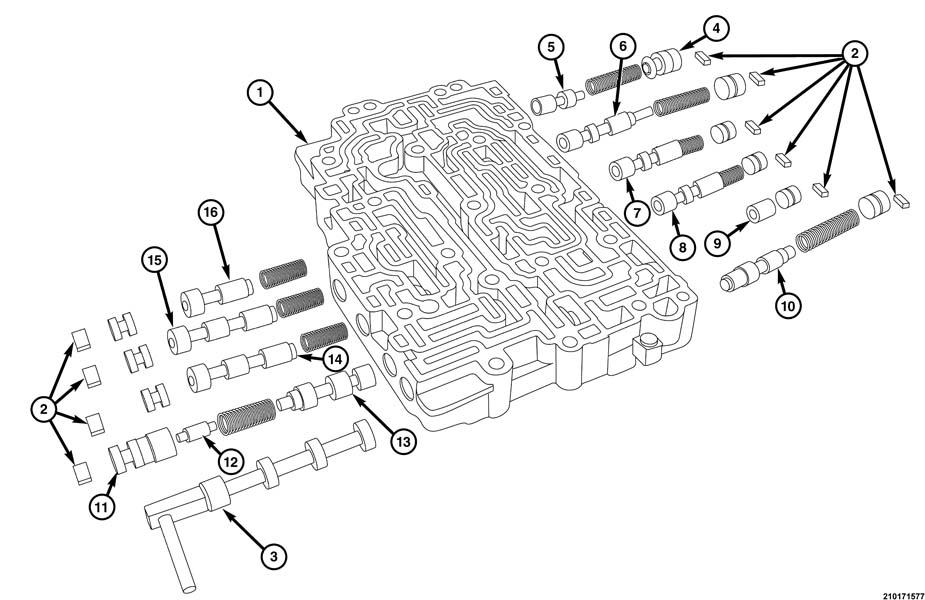

   Fig 10: Valve Body & Valves

   Courtesy of CHRYSLER GROUP, LLC

   1= Middle Valve Body

   2= Stopper Plates

   3= Manual Valve

   4= Adjust Screw

   5= Reducing Valve -2

   6= Torque Converter Control Valve

   7= Overdrive and Low-reverse Switch Valve

   8= Over Drive Pressure Switch Valve

   9= 3-5-R and 2-6 Brake Check Valve

   10= Low-reverse Switch Valve

   11= Torque Converter Pressure Control Sleeve

   12= Torque Converter Control Plug

   13= Torque Converter Pressure Control Valve

   14= 3-5-R pressure Switch Valve

   15= 2-6 Brake Pressure Switch Valve

   16= Under Drive Pressure Switch Valve

10. Install valve assemblies (5 threw 16), one at a time, into the middle valve body (1).

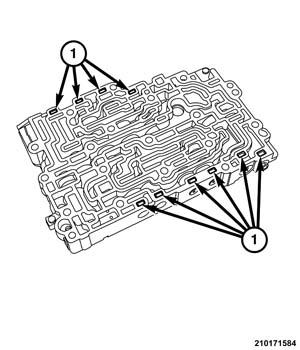

    Fig 11: Middle Valve Body, Stopper Plates, Valve Plugs & Adjusters

    Courtesy of CHRYSLER GROUP, LLC
11. One valve at a time, install the stopper plates (1) to hold the valve plugs and adjusters into the middle valve body.

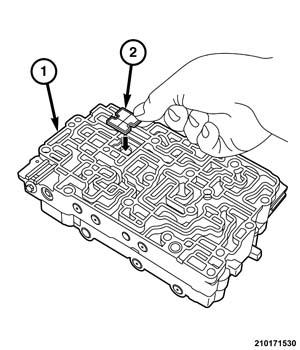

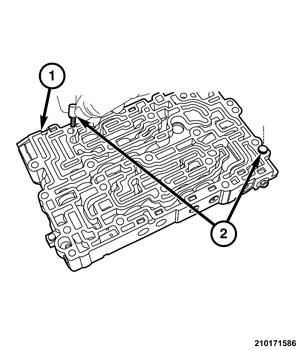

    Fig 12: Middle Valve Body, Check Valves & Springs

    Courtesy of CHRYSLER GROUP, LLC
12. Install the check valves and springs (2) in the middle valve body (1).
13. Place the outer valve body on the middle valve body.
14. While holding the middle valve body to the inner valve body, turn the two sections over so the inner valve body is on the work surface.

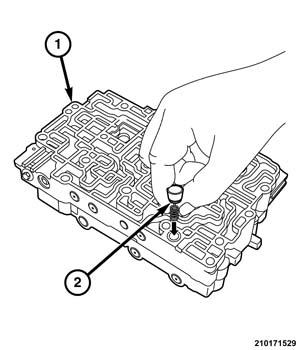

    Fig 13: Middle Valve Body & Damping Valve

    Courtesy of CHRYSLER GROUP, LLC
15. Install the damping valve (2) and coil spring into the middle valve body (1).
    Fig 14: Middle Valve Body & Fluid Strainer

    Courtesy of CHRYSLER GROUP, LLC
16. Install the oil strainer (2) into the middle valve body (1).

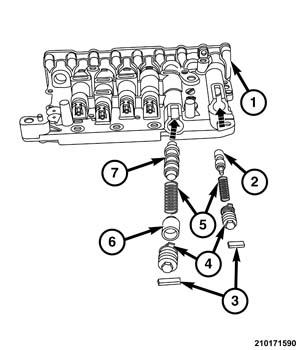

    Fig 15: Outer Valve Body, Regulator, Regulator Sleeve, Reducing Valve & Springs

    Courtesy of CHRYSLER GROUP, LLC
17. Install the regulator (7), regulator sleeve (6) and reducing valve (2) and springs (5) into the outer valve body (1).

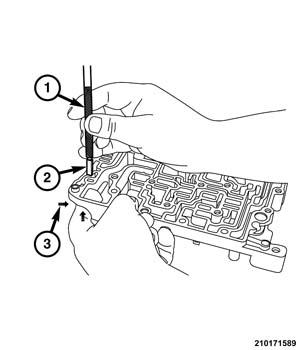

    Fig 16: Outer Valve Body, Stopper Plate & Reducing Valve Adjuster

    Courtesy of CHRYSLER GROUP, LLC
18. Install the stopper plate (2) to hold the reducing valve adjuster (3) into the outer valve body.

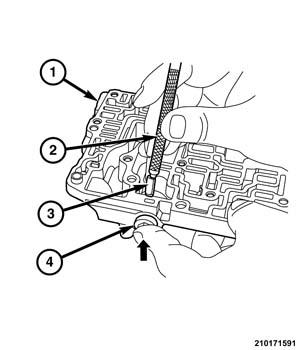

    Fig 17: Outer Valve Body, Stopper Plate & Regulator Valve Adjuster

    Courtesy of CHRYSLER GROUP, LLC
19. Install the stopper plate (3) to hold the regulator valve adjuster (4) into the outer valve body (1).

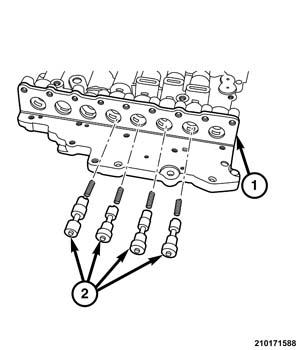

    Fig 18: Outer Valve Body, Pressure Control Valves & Springs

    Courtesy of CHRYSLER GROUP, LLC
20. Install the pressure control valves (2) and springs into the outer valve body (1).

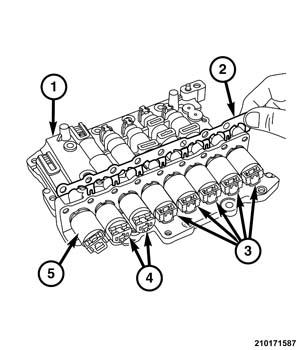

    Fig 19: Outer Valve Body & Solenoids

    Courtesy of CHRYSLER GROUP, LLC

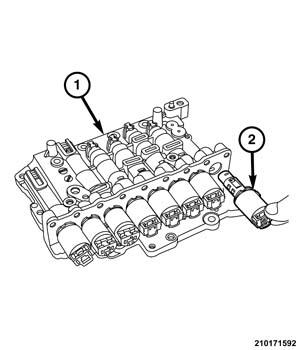

21. Insert the solenoids (2) into the outer valve body (1). The solenoids (1) must be installed in the same locations that they were removed from.
    Fig 20: Solenoid Retainer Separated From Outer Valve Body

    Courtesy of CHRYSLER GROUP, LLC
22. Place the solenoid retainer (2) in position on outer valve body (1).
    Fig 21: Outer Valve Body & Solenoid Retainer

    Courtesy of CHRYSLER GROUP, LLC

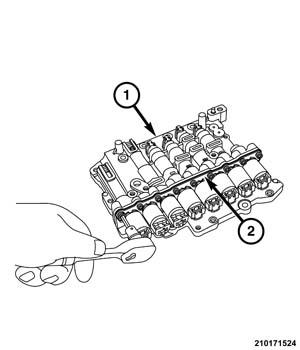

23. Install screws to hold the solenoid retainer (2) to the outer valve body (1). Refer to SPECIFICATIONS .
24. Turn the outer valve body over on the work surface.

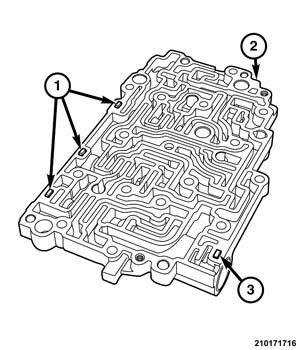

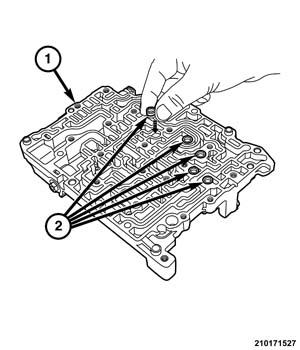

    Fig 22: Outer Valve Body & Five Strainers

    Courtesy of CHRYSLER GROUP, LLC
25. Install five strainers (2) into the outer valve body (1).

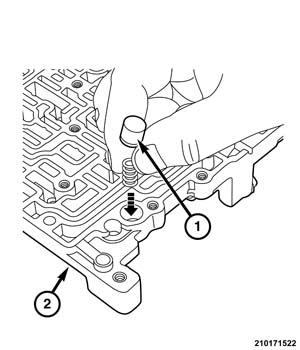

    Fig 23: Outer Valve Body, Check Valve & Spring

    Courtesy of CHRYSLER GROUP, LLC
26. Install the check valve (1) and spring into the outer valve body (2).

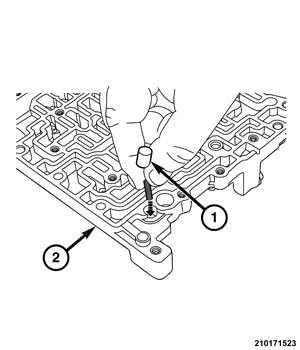

    Fig 24: Outer Valve Body, Damping Valve & Spring

    Courtesy of CHRYSLER GROUP, LLC
27. Install the damping valve and spring (1) into the outer valve body (2).
    Fig 25: Separator Plate & Outer Valve Body

    Courtesy of CHRYSLER GROUP, LLC

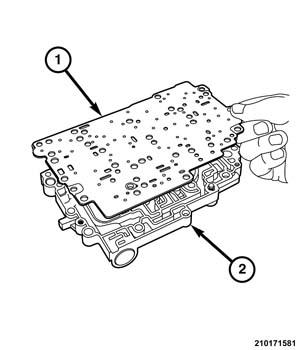

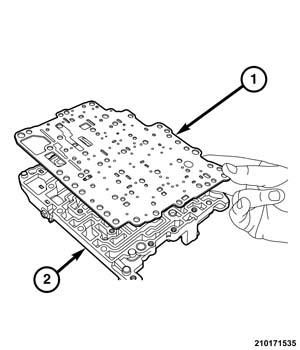

28. Place the separator plate (1) onto the outer valve body (2).
    Fig 26: Valve Body & Clamps

    Courtesy of CHRYSLER GROUP, LLC

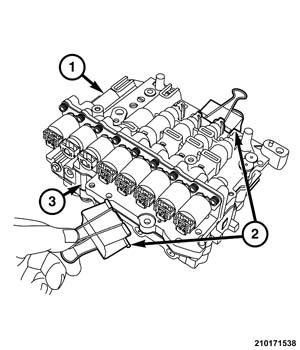

29. Optionally, suitable clamps (2) can be installed to keep the inner valve body and the separator plate from parting prematurely during the next set.

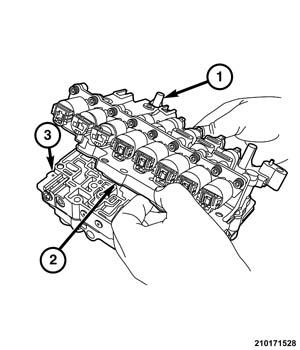

    Fig 27: Separator Plate, Outer & Middle Valve Body

    Courtesy of CHRYSLER GROUP, LLC
30. If clamping option is not used, pinch the separator plate (2) to the outer valve body (1) and lower them onto the middle valve body (3).
31. Holding the Lower, middle, and inner valve body sections together, turn the valve body over, set it on a flat work surface.
    Fig 28: Valve Body Sections & "black" Bolts

    Courtesy of CHRYSLER GROUP, LLC

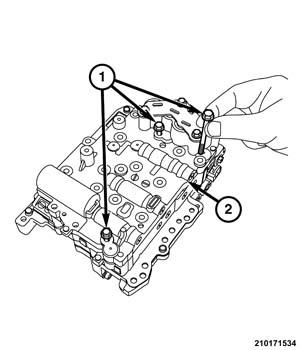

32. Install three "black" bolts (1) to hold the outer (2) and middle valve body sections to the inner valve body. Refer to SPECIFICATIONS .
    Fig 29: Valve Body Sections & Bolts

    Courtesy of CHRYSLER GROUP, LLC

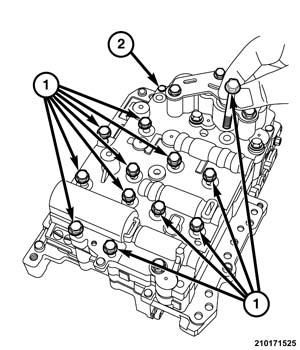

33. Install twelve bolts (1) to hold the outer (2) and middle valve body sections to the inner valve body. Refer to SPECIFICATIONS .
    Fig 30: Valve Body Sections & Bolts

    Courtesy of CHRYSLER GROUP, LLC

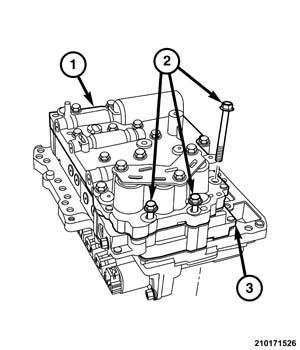

34. Install three bolts (2) to hold the outer (1) and middle (3) valve body sections to the inner valve body next to the accumulators. Refer to SPECIFICATIONS .
    Fig 31: Middle Valve Body & Manual Valve

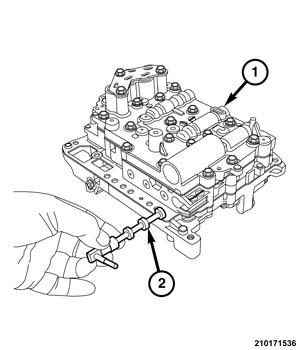

    Courtesy of CHRYSLER GROUP, LLC
35. Install the manual valve (2) into the middle valve body.
36. Install the valve body into the transaxle. Refer to VALVE BODY, INSTALLATION .
