Primary Thermostat - Gas Engine

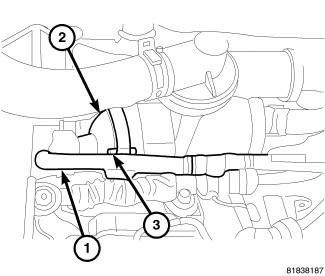

Fig 1: Primary Thermostat

Courtesy of CHRYSLER GROUP, LLC

1 - COOLANT HOSE

2 - INLET HOUSING

3 - BOLT

Position thermostat into the water plenum, aligning air bleed with the location notch on inlet housing (2).
Install inlet housing (2) onto coolant adapter. Tighten bolts to 9 N.m (79 in. lbs.).
Connect coolant hose (1).
Install air filter housing.
Fill cooling system. Refer to STANDARD PROCEDURE .
