U0125-Lost Communication With Dynamics Sensor: Notes

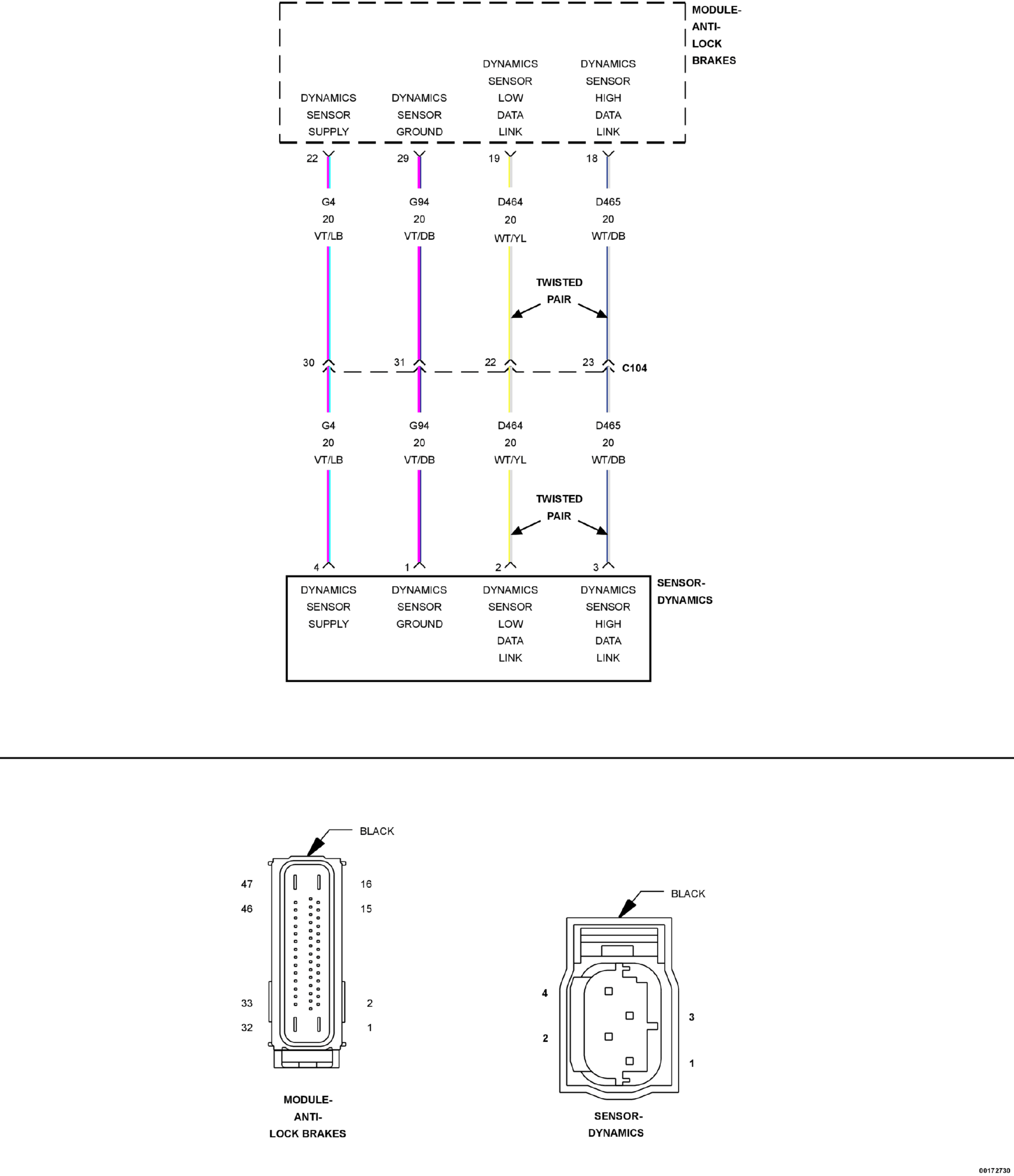

Fig 1: Dynamics Sensor Circuit Schematic

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
