Case Assembly, Differential: Disassembly: Disassembly

WARNING: This page is about a different car, the 2012 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

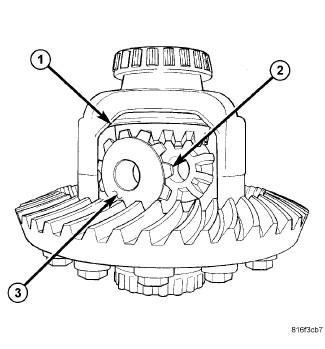

Fig 1: First Pinion Gear

Courtesy of CHRYSLER GROUP, LLC

Rotate one pinion gear (2) with thrust washer (3) to the differential window (1) and remove gear and thrust washer.

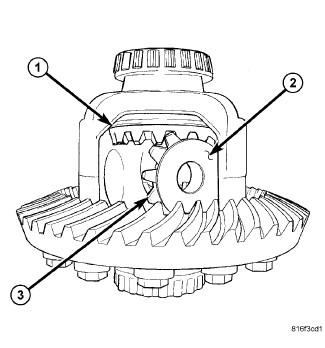

Fig 2: Second Pinion Gear
Courtesy of CHRYSLER GROUP, LLC
Rotate remaining pinion gear (3) with thrust washer (2) to the differential window (1) and remove gear and washer.

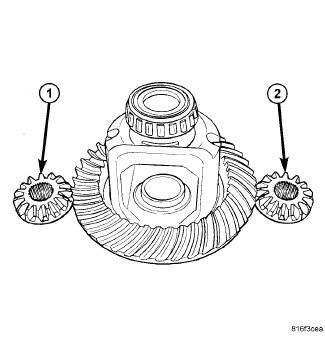

Fig 3: Side Gears
Courtesy of CHRYSLER GROUP, LLC
Remove differential side gears (1) (2) and thrust washers.
