B1969-00-Power Liftgate Open Direction Excessive Position Sensor Counts: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

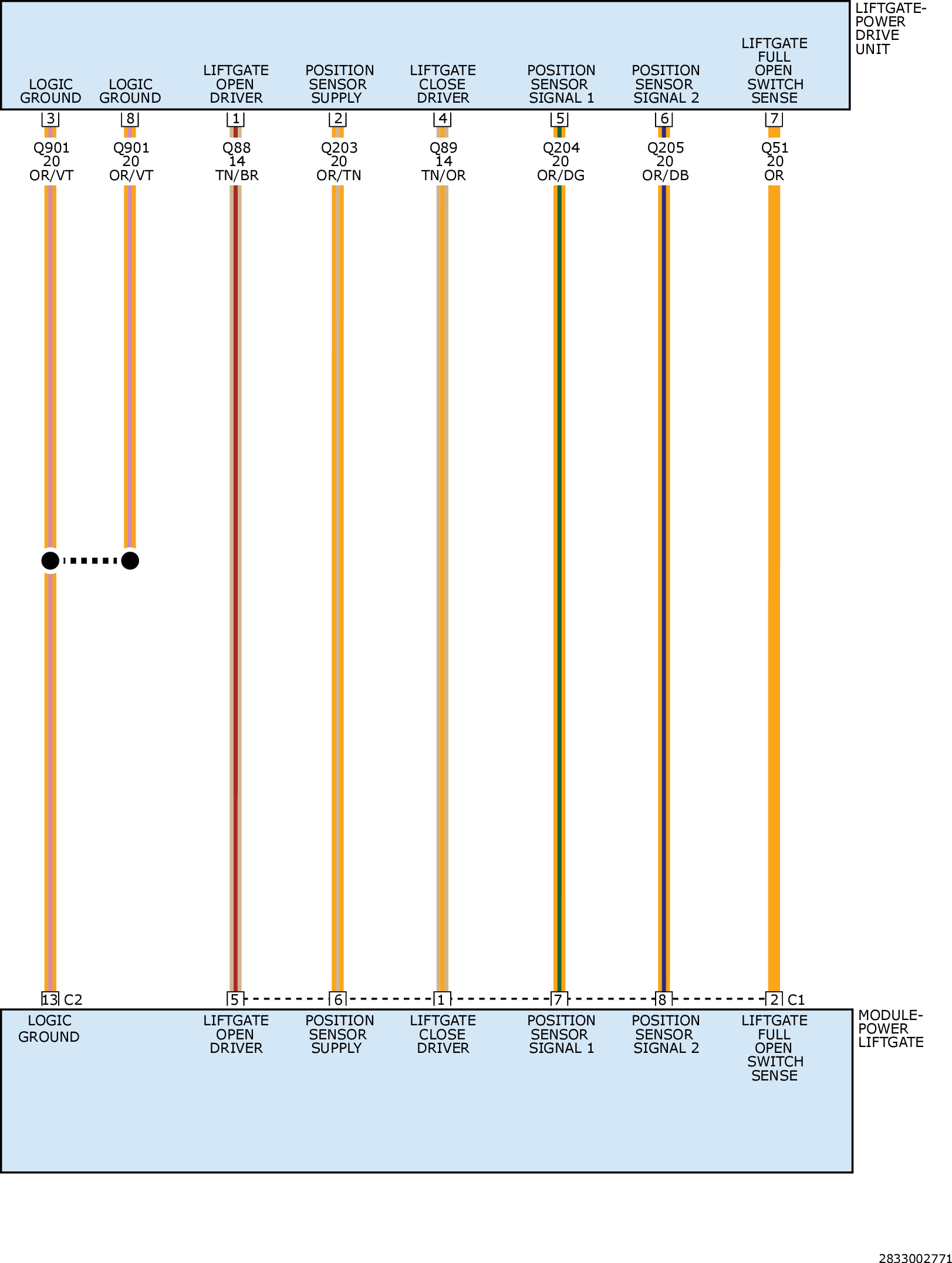

Fig 1: Power Liftgate Module & Drive Unit Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
