B196C-00-Power Liftgate Close Direction Excessive Position Sensor Counts: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

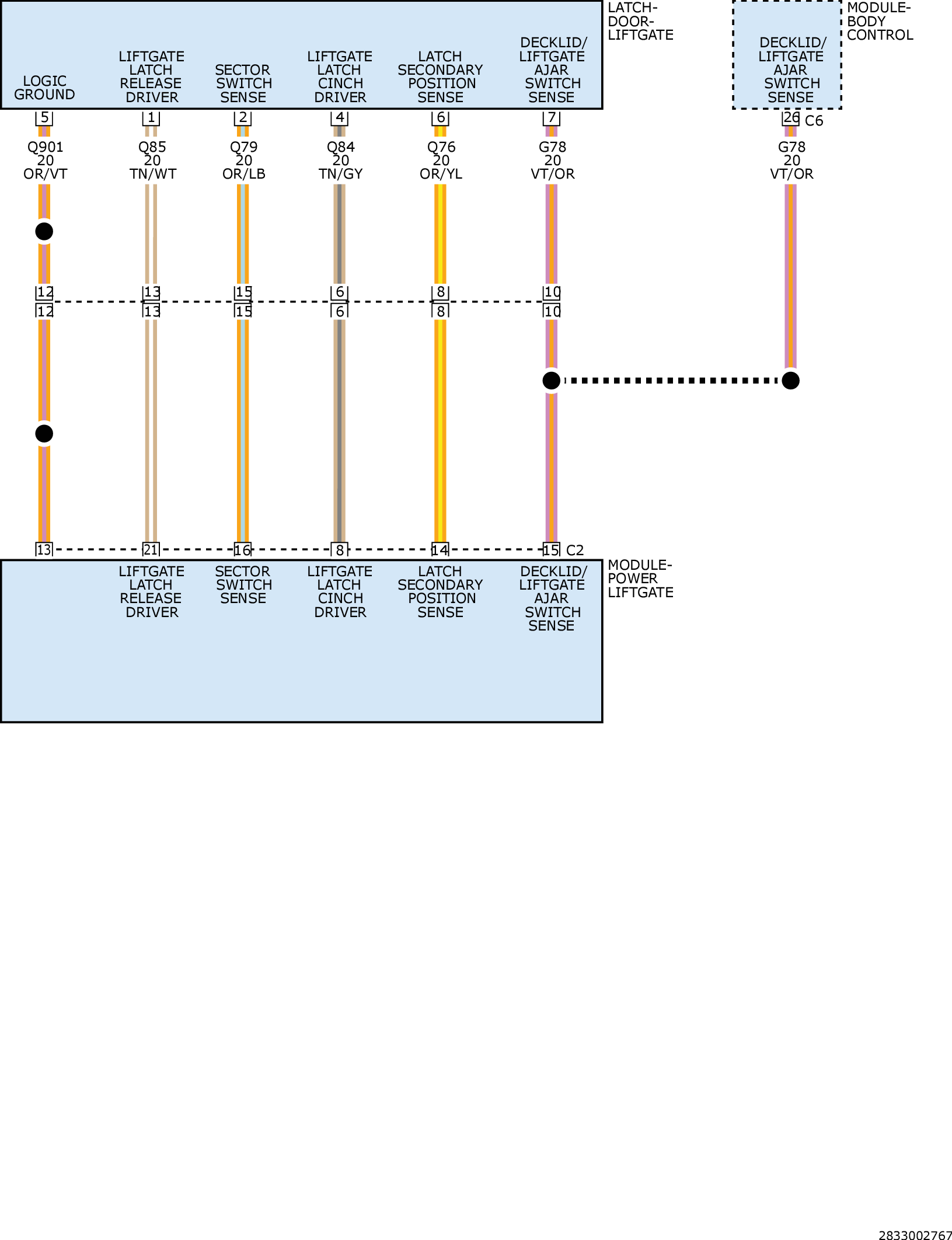

Fig 1: Power Liftgate Module & Liftgate Latch Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
