Description
›
Description 2.2L
Description 2.2L

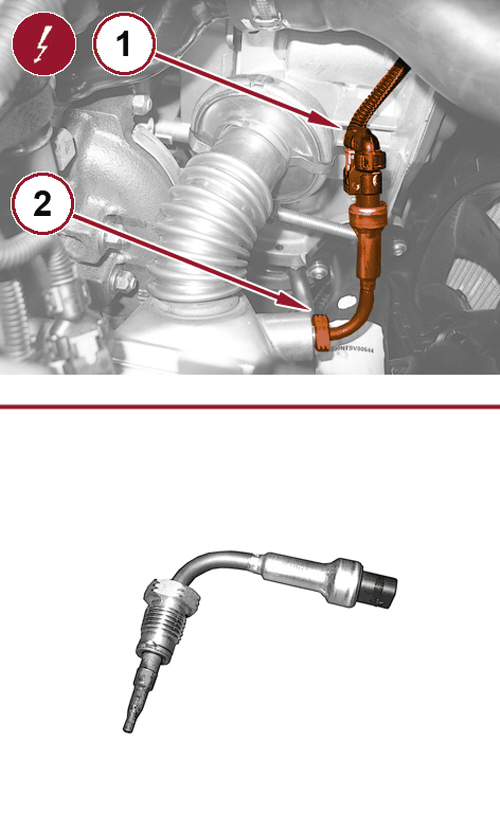

Fig 1: EGR Temperature Sensor & Low Pressure EGR Cooler
Courtesy of CHRYSLER GROUP, LLC
The EGR Temperature Sensor (2) is located on the low pressure EGR cooler (1).
Courtesy of CHRYSLER GROUP, LLC
