2.2L Diesel

Clean the gasket sealing surfaces.

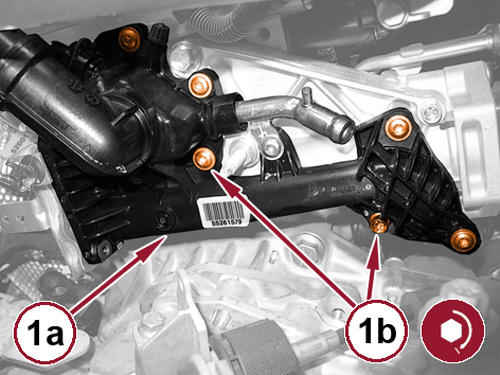

Fig 1: Thermostat Housing & Bolts
Courtesy of CHRYSLER GROUP, LLC
Using a NEW gasket seals, install the thermostat housing (1a). Tighten the bolts (1b) to the proper SPECIFICATIONS .

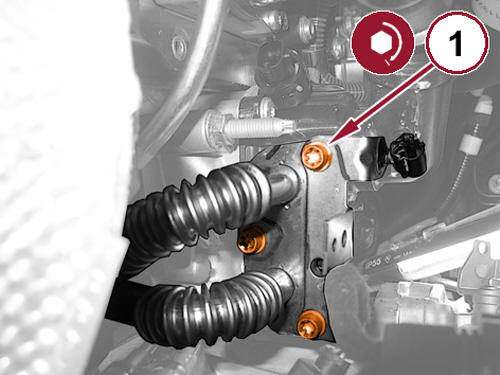

Fig 2: EGR Tube Bolts
Courtesy of CHRYSLER GROUP, LLC
Install the bolts (1) securing the EGR tubes to the thermostat housing and tighten to the proper SPECIFICATIONS .

Fig 3: Coolant Temperature Sensor Wire Harness Connector
Courtesy of CHRYSLER GROUP, LLC
Connect the coolant temperature sensor wire harness connector wire harness connector (1).

Fig 4: Front Oxygen Sensor Wire Connector
Courtesy of CHRYSLER GROUP, LLC
Attach the wire harness connector to the bracket and connect the front oxygen sensor wire harness connector (1).

Fig 5: Degas Hose, Upper Radiator Hose & Clamps
Courtesy of CHRYSLER GROUP, LLC
Install the upper radiator hose (2) onto the thermostat housing and tighten the clamp.
Install the degas hose (1) onto the thermostat housing and tighten the clamp.

Fig 6: Clamp & Coolant Hose
Courtesy of CHRYSLER GROUP, LLC
Install the coolant hose (1) and tighten the clamp.

Fig 7: Bolts & CAC Tube
Courtesy of CHRYSLER GROUP, LLC
Using a NEW O-ring seal, install the left charge Air Cooler (CAC) tube (1b). Tighten the bolts (1a) to the proper (Torque Specifications).

Fig 8: Retaining Clip & Quick-Disconnect Fitting
Courtesy of CHRYSLER GROUP, LLC
Connect the vacuum brake booster hose (1b) quick-disconnect fitting (1b) and close the retaining clip (1a).

Fig 9: Bolt
Courtesy of CHRYSLER GROUP, LLC
Install the bolt securing the left CAC tube. Tighten the bolts to the proper TORQUE SPECIFICATIONS - DIESEL .
Fill the cooling system. Refer to STANDARD PROCEDURE .
Install the belly pan. Refer to BELLY PAN, INSTALLATION .
Install the engine cover. Refer to
Install the battery tray. Refer to BATTERY, INSTALLATION .
Run engine to operating temperature and check for leaks.
