Module, Traffic: Removal: Removal

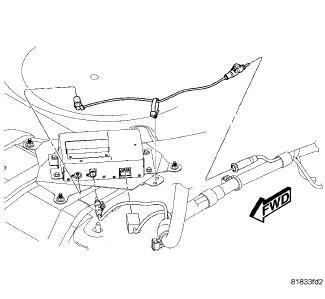

Fig 1: Removing/Installing Traffic Message Center Module

Courtesy of CHRYSLER GROUP, LLC

1. Disconnect and isolate the negative cable from the battery.
2. Disconnect the antenna cables.
3. Disconnect the wire harness connector.
4. Remove the retaining fasteners.
5. Remove the Traffic Message Channel module (TMC).
