Sensor, Differential Pressure: Installation: Installation

WARNING: This page is about a different car, the 2014 Jeep Patriot and 2014 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

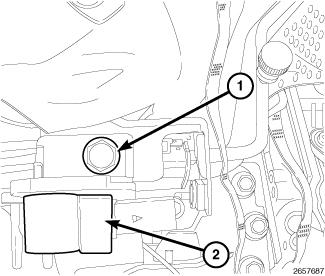

Fig 1: Identifying Bolt & Pressure Differential Sensor
GC0138495Courtesy of CHRYSLER GROUP, LLC
  1. Install pressure differential sensor (2). Tighten bolt (1) to 10 N.m (89 in. lbs.).

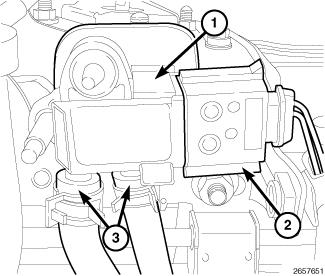

    Fig 2: Identifying Pressure Differential Sensor, Harness Connector & Vacuum Lines
    GC0138494Courtesy of CHRYSLER GROUP, LLC
  2. Connect the pressure differential sensor (1) vacuum lines (3).
  3. Connect the pressure differential sensor (1) harness connector (2).
  4. Connect the negative battery cable.
