Frame, Ladder: Installation: Installation

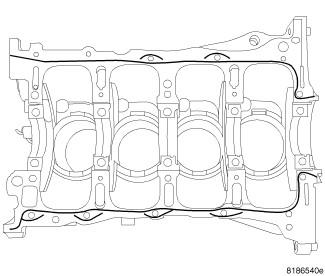

Fig 1: Sealing Ladder Frame
GC0084999Courtesy of CHRYSLER GROUP, LLC
NOTE:

When using RTV, the sealing surfaces must be clean and free from grease and oil.

NOTE:

When using RTV, parts should be assembled in 10 minutes and tighten to final torque within 45 minutes.

  1. Apply a 2 mm bead of Mopar® engine sealant RTV or equivalent as shown in illustration.

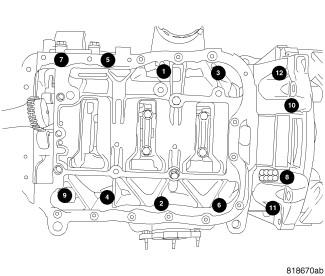

    Fig 2: Ladder Frame Bolts Tightening Sequence
    GC0085000Courtesy of CHRYSLER GROUP, LLC
  2. Install bolts and tighten as shown in illustration following a two step method.
    • First: All to 10 N.m (89 in. lbs.).
    • Second: All to 26 N.m (19 ft. lbs.).
  3. Install balance shaft module. Refer to PUMP, ENGINE OIL, INSTALLATION .
  4. Install oil pan. Refer to PAN, OIL, INSTALLATION .
  5. Install the transmission to the engine.
  6. Install the engine. Refer to INSTALLATION .
