Insulator, Engine Mount, Front: Removal: Removal

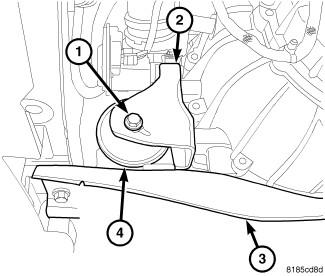

Fig 1: Front Mount Through Bolt
GC0084962Courtesy of CHRYSLER GROUP, LLC
  1. Raise vehicle.
  2. Remove fore aft member (3) to mount (4) bolts.
  3. Remove mount through bolt (1).
  4. Remove fore aft member (3) mounting bolts and remove.
  5. Remove front mount (4).
