Bearing, Differential Side: Installation: Installation
WARNING: This page is about a different car, the 2012 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of CHRYSLER GROUP, LLC

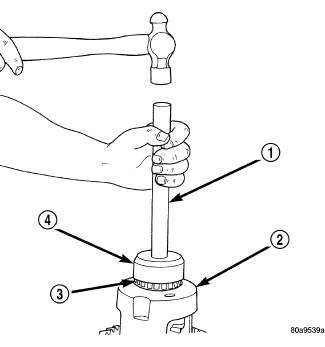

- Install differential case (2) bearings (3) with Installer (special tool #C-3716-A, Installer, Bearing) (4) and Handle (special tool #C-4171, Driver Handle, Universal) (1).
- Install differential into the housing.
