Dimension Illustrations

WARNING: This page is about a different car, the 2012 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

DESCRIPTION	FIGURE
FRAME DIMENSIONS - PLAN VIEW	Refer toFig 1.
FRAME DIMENSIONS - SIDE VIEW	Refer toFig 2.

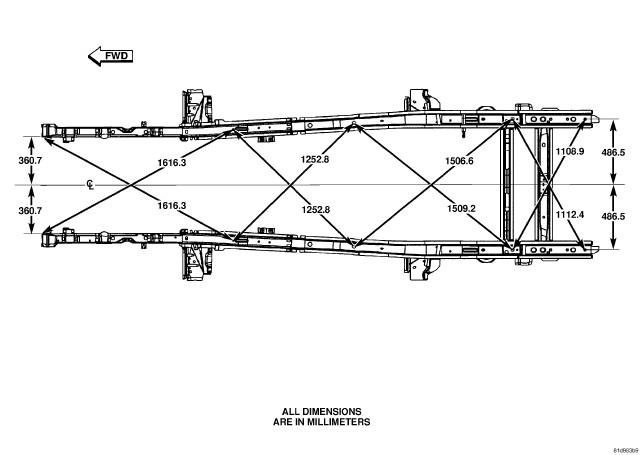

Fig 1: Frame Dimensions - Plan View

Courtesy of CHRYSLER GROUP, LLC

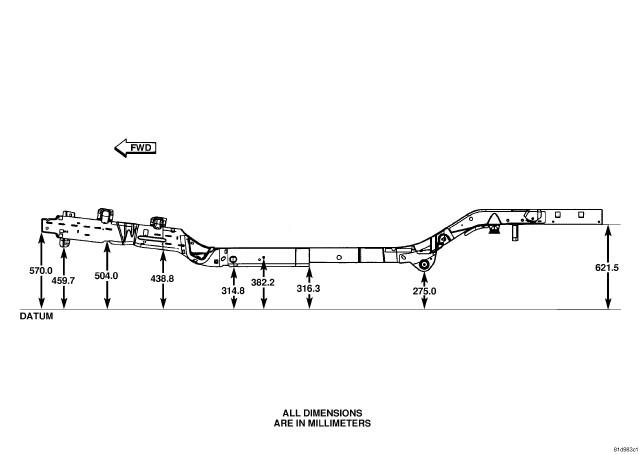

Fig 2: Frame Dimensions - Side View

Courtesy of CHRYSLER GROUP, LLC
