Heat Shield: Installation: Installation
WARNING: This page is about a different car, the 2013 Jeep Patriot and 2013 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

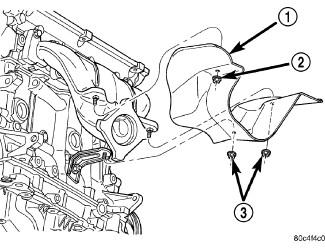

| 1 - HEAT SHIELD |
| 2 - NUT |
| 3 - NUT |
- Position heat shield(s) to underbody.
- Install heat shield fasteners.
- Inspect heat shield to exhaust system clearances and adjust as necessary.
- Lower vehicle.
- Start the engine and inspect for exhaust leaks. Repair exhaust leaks as necessary.
- Check the exhaust system for contact with the body panels. Make the necessary adjustments, if needed.
