Assembly, Variable Valve Timing: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

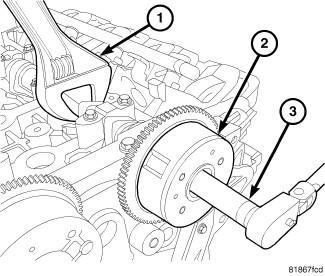

Fig 1: Removing & Installing Cam Phaser

Courtesy of CHRYSLER GROUP, LLC

CAUTION:

Do not use an impact wrench to tighten camshaft sprocket bolts. Damage to the camshaft-to-sprocket locating dowel pin and camshaft phaser may occur.

Install phaser (2) assembly on camshaft.
NOTE:
Make sure the dowel is seated in the dowel hole and not in an oil feed hole. The dowel hole is larger than the 4 oil feed holes.
Install phaser retaining bolt. Hold camshaft in place with a wrench (1) and tighten bolt to 59 N.m (44 ft. lbs.).
Install camshafts . Refer to CAMSHAFT, ENGINE, INSTALLATION .

NOTE:

The Cam/Crank Variation Relearn procedure must be performed using the scan tool anytime there has been a repair/replacement made to a powertrain system, for example: flywheel, valvetrain, camshaft and/or crankshaft sensors or components. Refer to STANDARD PROCEDURE .
