P0706-00-Transmission Range Sensor Performance: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

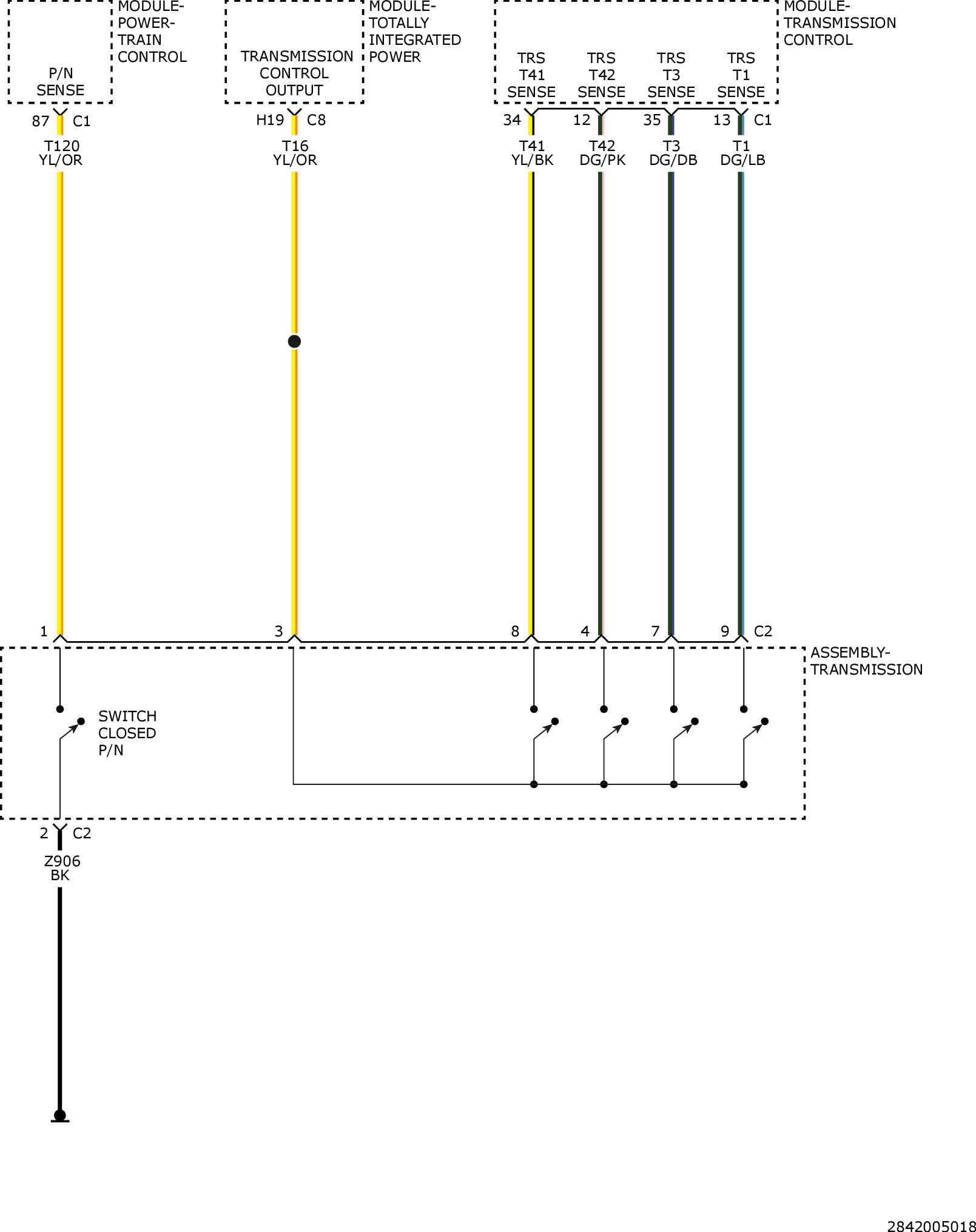

Fig 1: Transmission Range Sensor Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
