P0716-00-Input Shaft Speed Sensor 1 Performance: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

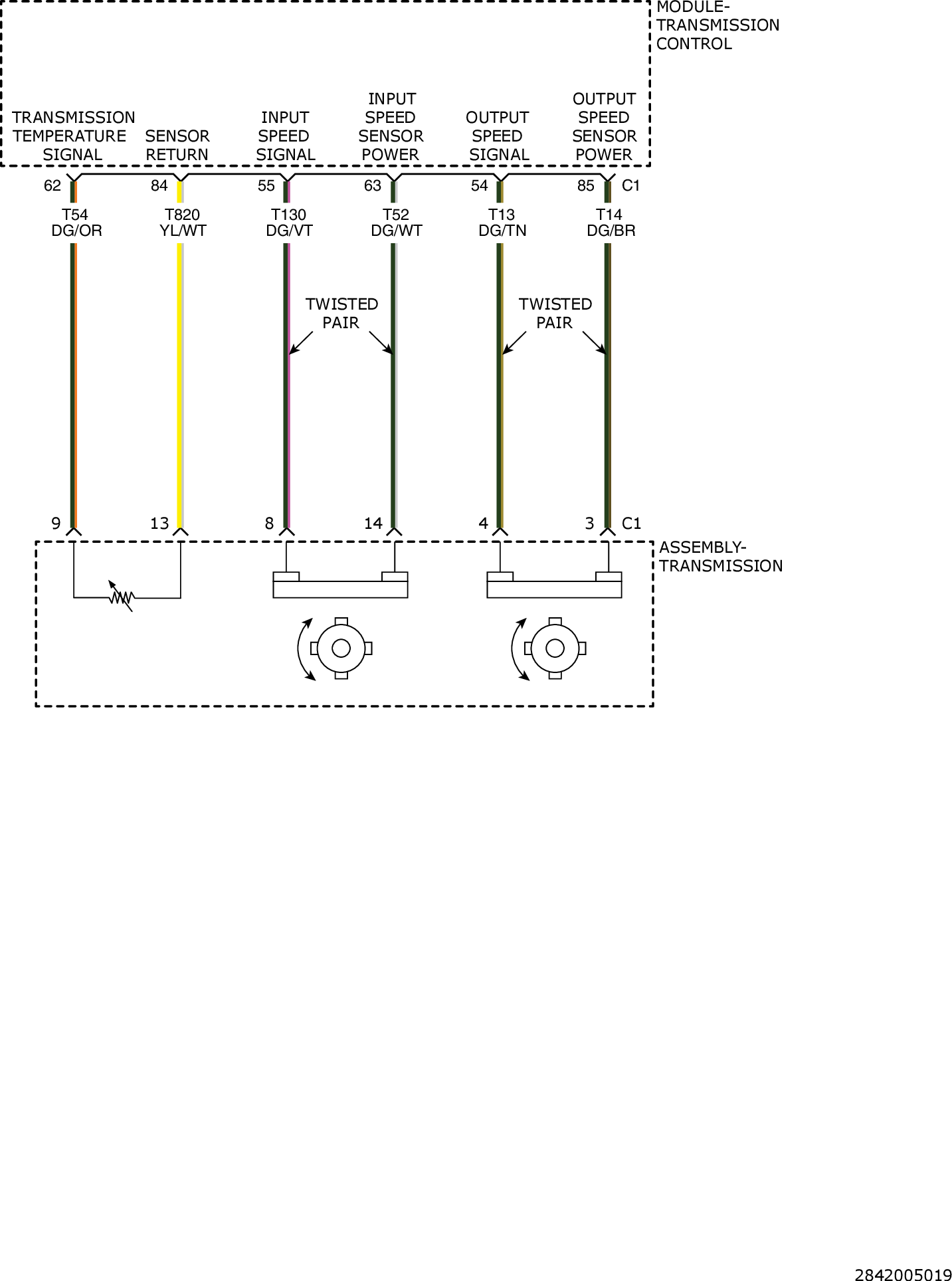

Fig 1: Transmission Fluid Temperature & Speed Sensors Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
