Antenna, Remote Start: Installation: Installation
- Position the Remote Start Antenna to the top of the dashboard and feed the connector end through the dashboard opening and connect the wiring harness connector end to the Sentry Key Immobilizer Module (SKREEM).
Courtesy of CHRYSLER GROUP, LLC

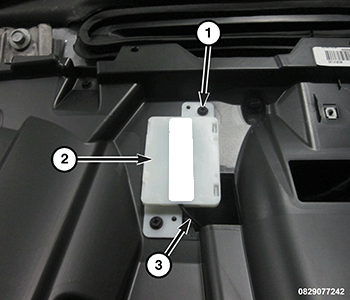

- Using screws (1), secure the RSA (2) to the dashboard.
- Install the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, INSTALLATION
.
- Install the instrument panel upper cover. Refer to COVER, INSTRUMENT PANEL, INSTALLATION
.
- Connect the negative battery cable.
