Sensor, Crankshaft Position: Installation: Installation

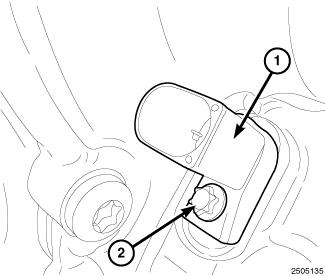

Fig 1: Crankshaft Position Sensor & Bolt

Courtesy of CHRYSLER GROUP, LLC

1. Install the crankshaft position sensor (1). Tighten bolt (2) to 8 N.m (71 in. lbs).

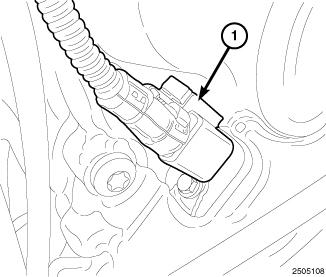

   Fig 2: Crankshaft Position Sensor Harness Connector

   Courtesy of CHRYSLER GROUP, LLC
2. Connect the crankshaft position sensor wire harness connector (1).

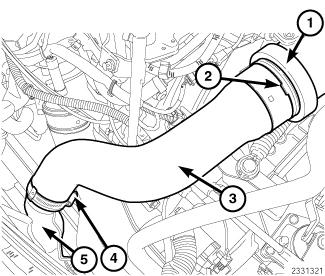

   Fig 3: Upper Charge Air Tube, Lock Ring, Lower Charge Air Tube, Clamp & Charge Air Cooler (CAC) Inlet

   Courtesy of CHRYSLER GROUP, LLC
3. Connect the lower charge air tube (3) from the charge air cooler (CAC) inlet (5) and securely tighten clamp (4).
4. Install the lower charge air tube (3) to the upper charge air tube (1) to turbocharger and lock the lock ring in place.
5. Install the negative battery cable.
