2.0L & 2.4L - DTCS P061A To P2101
›
DTC Troubleshooting
›
DTC P2066: -Fuel Level Sensor 2 Performance
›
Notes
DTC P2066: -Fuel Level Sensor 2 Performance: Notes

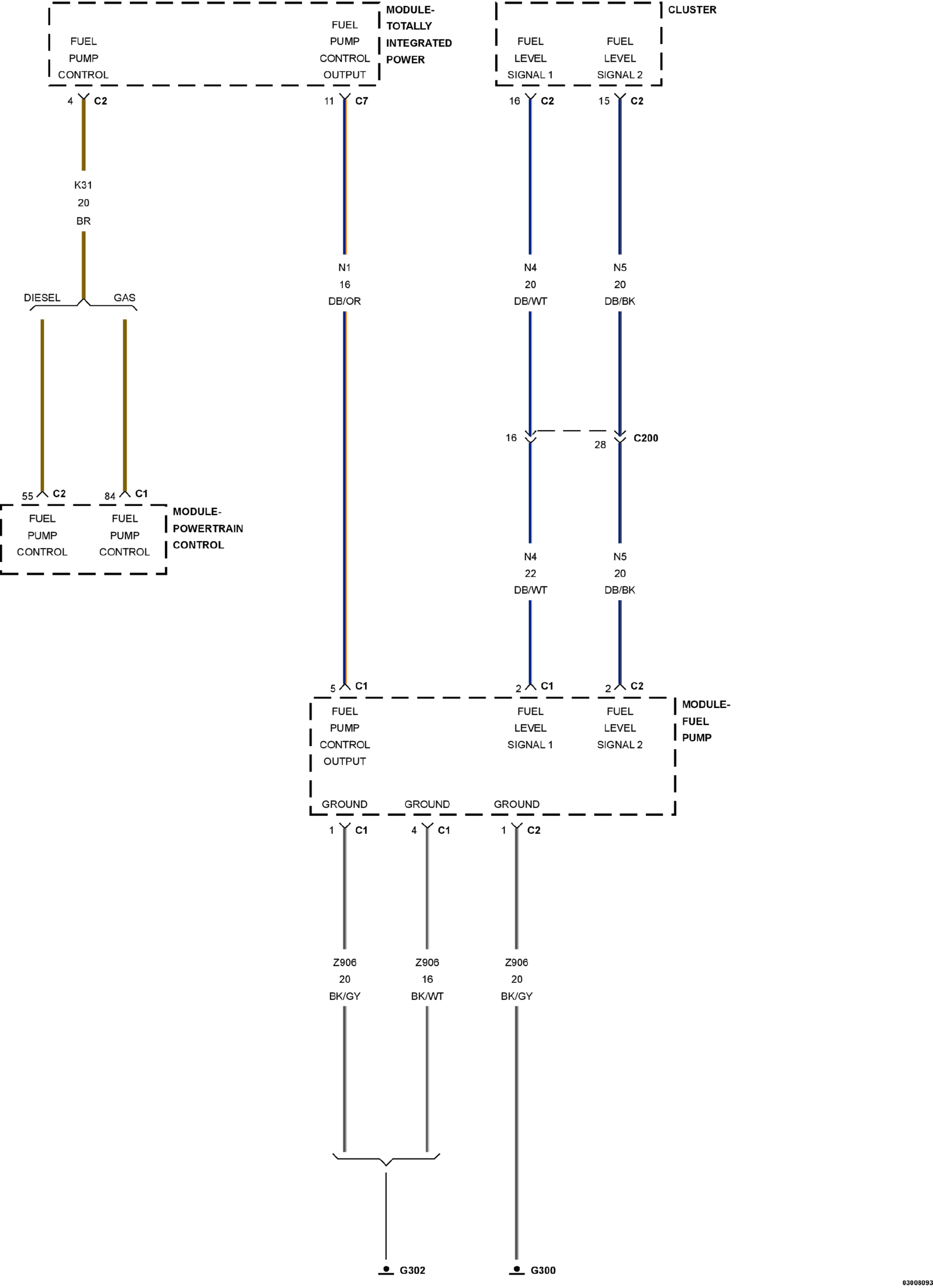

Fig 1: Fuel Pump Control Circuit 2 Wiring Diagram
Courtesy of CHRYSLER GROUP, LLC
For a complete wiring diagram,
refer to appropriate SYSTEM WIRING DIAGRAMS article
.
