Module, Compass: Removal: Removal
WARNING: This page is about a different car, the 2012 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the battery negative cable.

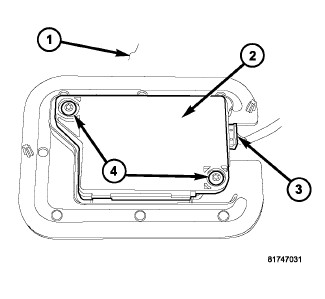

- Partially remove the headliner (1) to gain access to the Remote Compass Module (RCM) (2). for the appropriate procedure. Refer to HEADLINER, REMOVAL .
- Disconnect the RCM electrical connector (3).
- Remove the RCM retaining screws (4).
- Remove the RCM (2) from the vehicle.
