Standard Procedure - Drain And Fill

WARNING: This page is about a different variant/trim than selected.

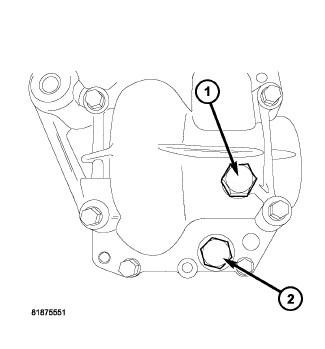

Fig 1: Drain And Fill Plugs
GC0098399Courtesy of CHRYSLER GROUP, LLC
  1. Remove fill plug (1) and drain plug (2). Drain fluid.
  2. Install drain plug (2) and tighten to the proper specification. Refer to SPECIFICATIONS .
  3. Fill with MOPAR® MS 9020 80W90 Gear Lube to bottom of fill plug.
  4. Install fill plug (1) and tighten to the proper specification. Refer to SPECIFICATIONS .
