Positive Battery

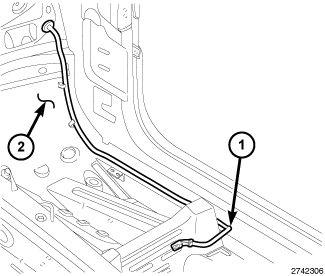

Fig 1: Positive Battery Cable & Vehicle

Courtesy of CHRYSLER GROUP, LLC

Install the positive battery (1) cable into the vehicle (2).

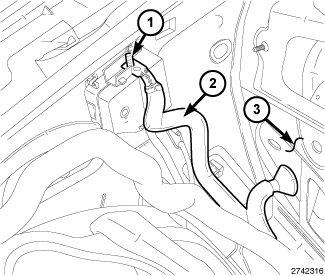

Fig 2: Retainer, Positive Battery Cable & Dash Panel
Courtesy of CHRYSLER GROUP, LLC
Push the positive battery cable (2) through the dash panel (3).
Install the retainer (1) from the positive battery cable junction block.

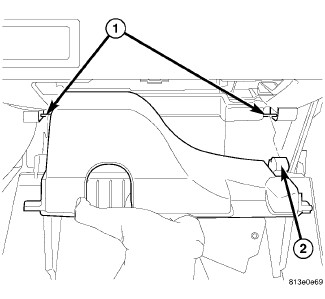

Fig 3: Removing/Installing Glove Box Assembly
Courtesy of CHRYSLER GROUP, LLC
Install the glovebox liner.
Install the glovebox. Refer to GLOVE BOX, INSTRUMENT PANEL, INSTALLATION .

Fig 4: Scuff Plate & Screws
Courtesy of CHRYSLER GROUP, LLC
Install the passenger side cowl trim panel. Refer to PANEL, COWL TRIM, SIDE, INSTALLATION .
Install the nut that secures the passenger side cowl trim panel to the mounting bracket.
Install the passenger side hush panel from underneath the instrument panel.

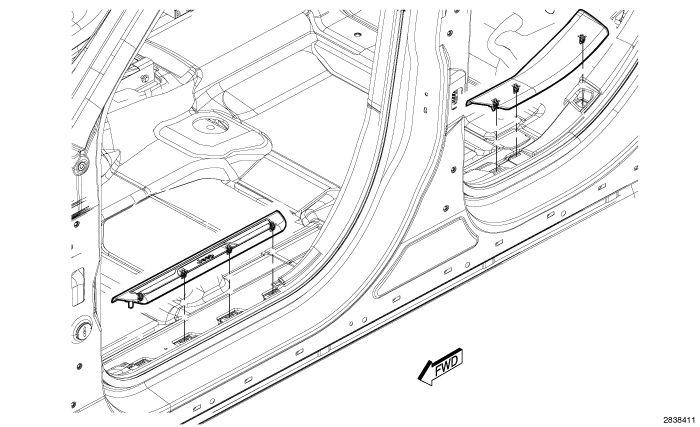

Fig 5: Side Scuff Plate
Courtesy of CHRYSLER GROUP, LLC

NOTE:
Driver's side shown in illustration, passenger side similar.
Install the passenger side scuff plate. Refer to PLATE, SCUFF, DOOR, INSTALLATION .

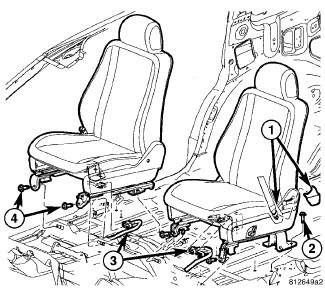

Fig 6: View Of Front Seat
Courtesy of CHRYSLER GROUP, LLC
Install the front passenger seat. Refer to SEAT, FRONT, INSTALLATION .

Fig 7: Battery Cover
Courtesy of CHRYSLER GROUP, LLC
Connect the positive batter cable.
Install the battery cover (1).
Connect the negative and positive battery cable.
