Frame Dimensions

Frame dimensions are listed in metric scale. All dimensions are from center to center of Principle Locating Point (PLP), or from center to center of PLP and fastener location.

VEHICLE PREPARATION:

Position the vehicle on a level work surface. Using screw or bottle jacks, adjust the vehicle PLP heights to the specified dimension above a level work surface. Vertical dimensions can be taken from the work surface to the locations indicated were applicable.

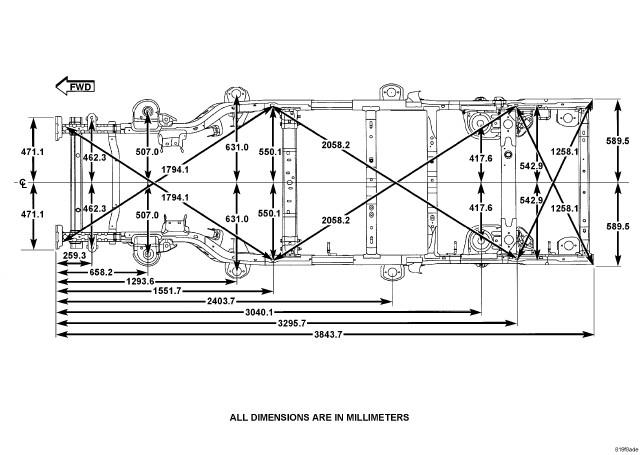

Fig 1: Plan View - Two Door

Courtesy of CHRYSLER GROUP, LLC

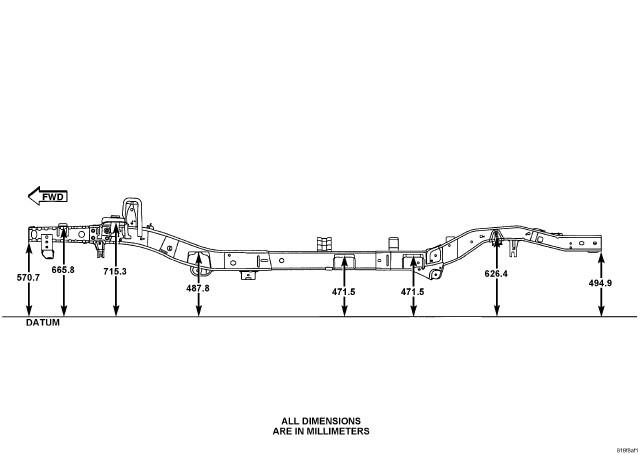

Fig 2: Side View - Two Door Jk Only

Courtesy of CHRYSLER GROUP, LLC

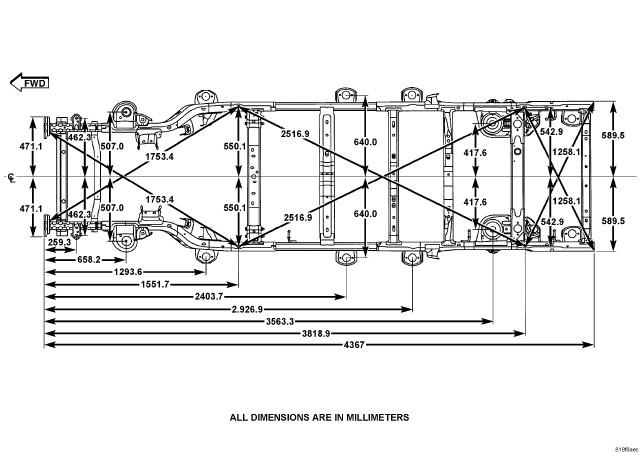

Fig 3: Plan View - Two And Four Door J8

Courtesy of CHRYSLER GROUP, LLC

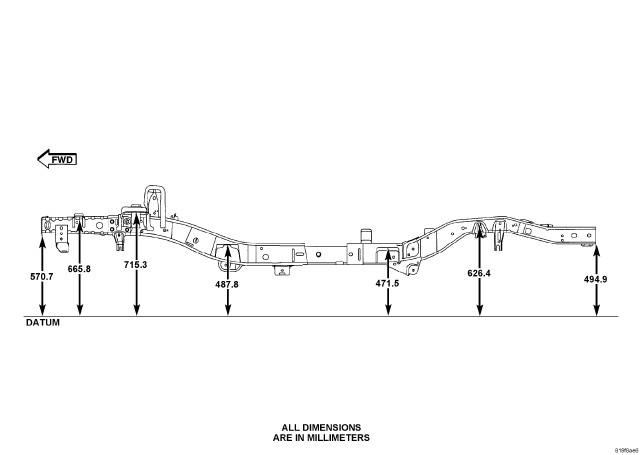

Fig 4: Side View - Four Door

Courtesy of CHRYSLER GROUP, LLC
