P0325-Knock Sensor 1 Circuit: Notes

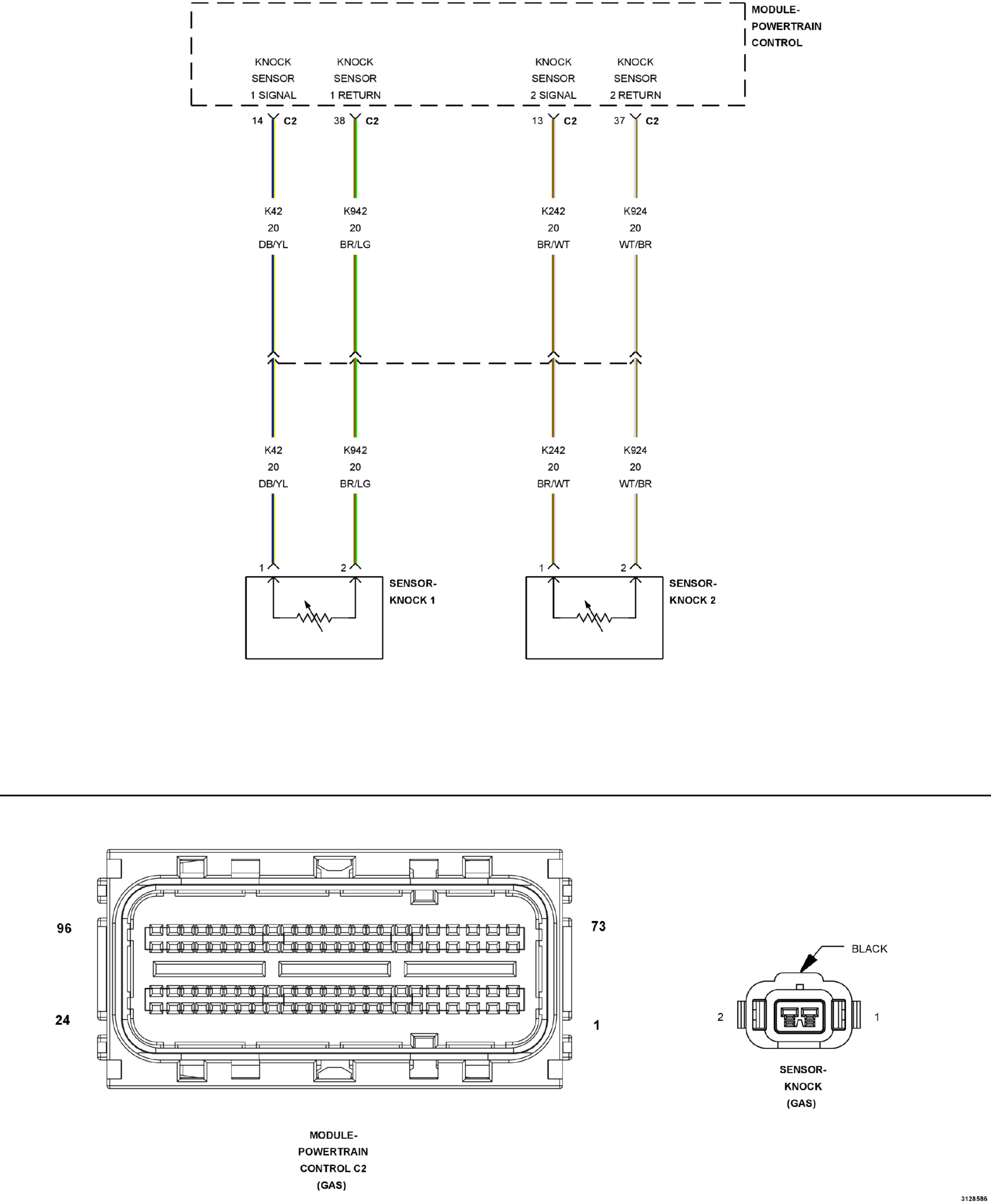

Fig 1: Knock Sensor Circuit Wiring Diagram
GC0150242Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
