Sensor, Camshaft Position: Installation: Diesel

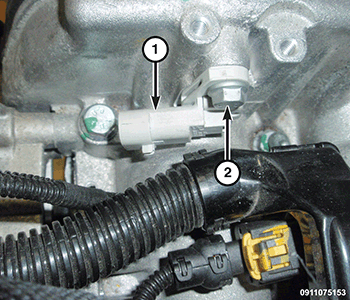

Fig 1: CMP Sensor & Bolt

Courtesy of CHRYSLER GROUP, LLC

1. Install the Camshaft Position Sensor (CMP) (1). Tighten bolt (2) to the proper torque specification. Refer to SPECIFICATIONS .

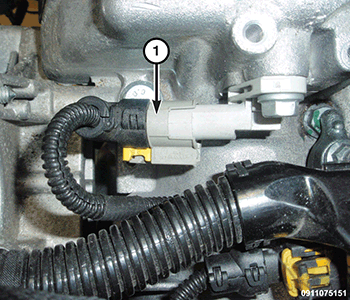

   Fig 2: Camshaft Position Sensor (CMP) Wire Harness Connector

   Courtesy of CHRYSLER GROUP, LLC
2. Connect the CMP wire harness connector (1).
3. Install the crankcase breather hose. Refer to TUBE, CRANKCASE BREATHER, INSTALLATION .
4. Install the engine cover.
5. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
