Removal And Installation: 1.4L: Removal

Remove the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .

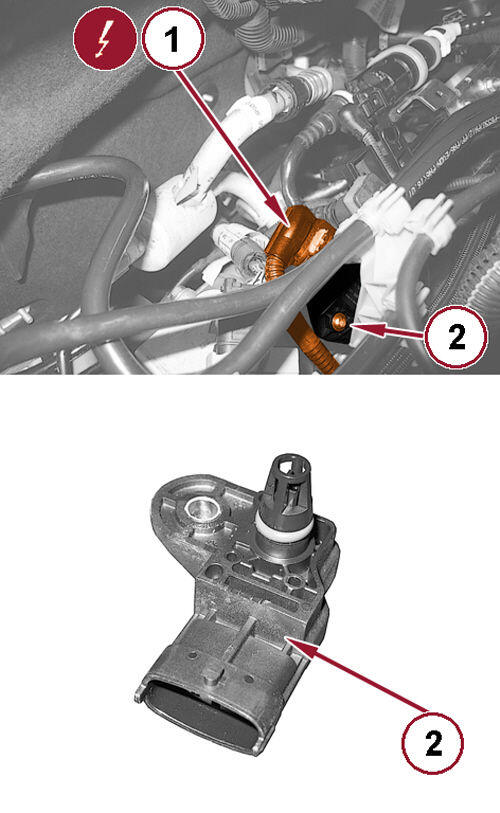

Fig 1: Manifold Pressure/Intake Air Temperature Sensor & Electrical Connection
Courtesy of CHRYSLER GROUP, LLC
Disconnect the electrical connection of the manifold pressure and intake air temperature sensor (1).
Remove the manifold pressure and intake air temperature sensor mounting fastener (2).
Remove the manifold pressure and intake air temperature sensor (2).
