P1593-Speed Control Switch 1/2 Stuck
›
Notes
P1593-Speed Control Switch 1/2 Stuck: Notes
For a complete wiring diagram,
refer to appropriate SYSTEM WIRING DIAGRAMS article
.

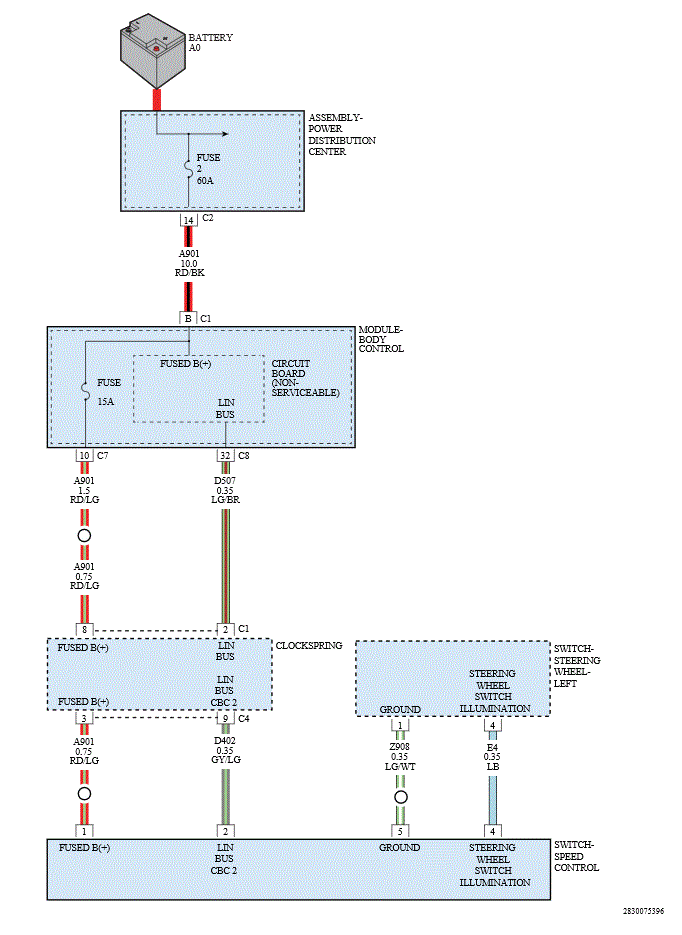

Fig 1: Speed Control Switch Circuit Diagram
Courtesy of CHRYSLER GROUP, LLC
