P0202-Fuel Injector 2 Circuit: Notes

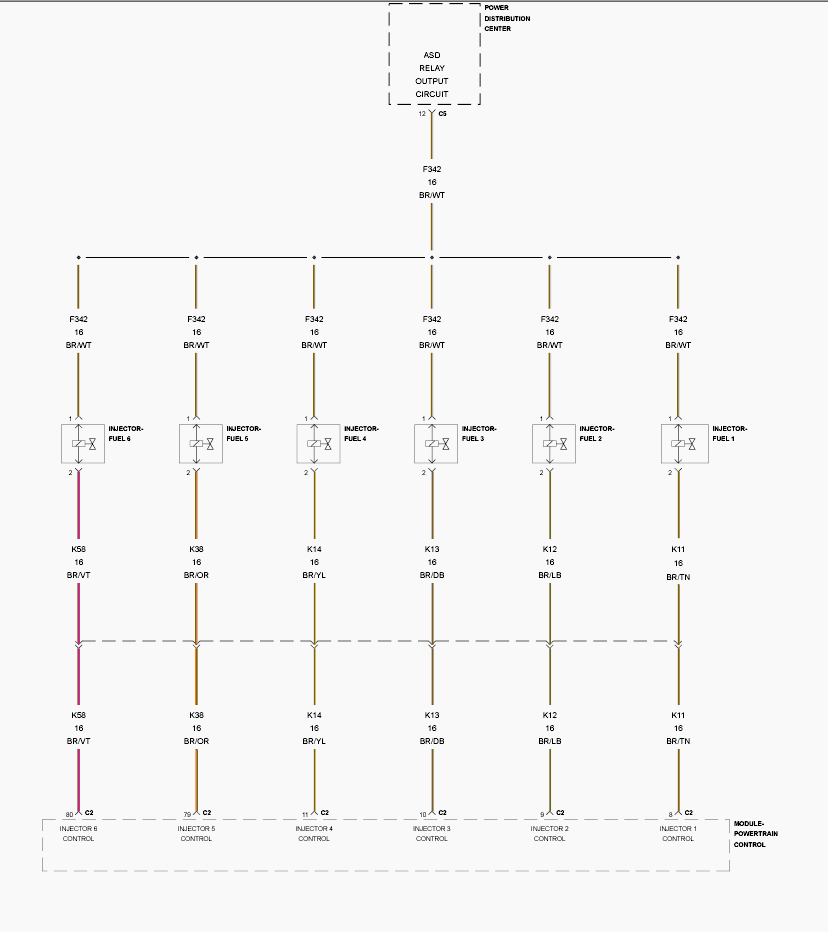

Fig 1: Fuel Injector Circuit Wiring Diagram
GC0150222Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
