P0521-Engine Oil Pressure Sensor Performance: Notes

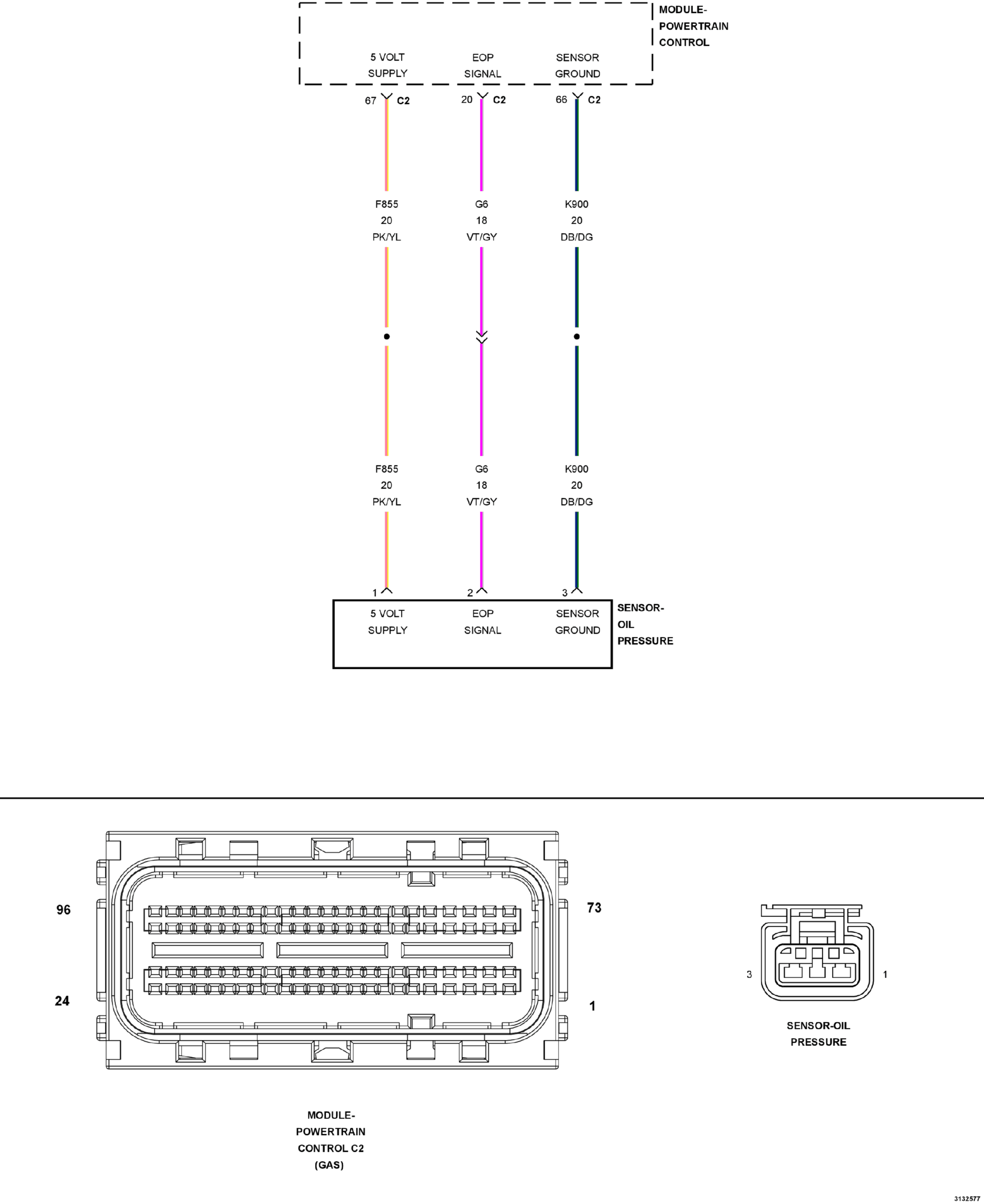

Fig 1: Engine Oil Pressure Sensor Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
