Axle Bushing

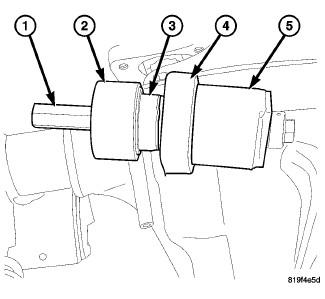

Fig 1: Installing Axle Bushing

Courtesy of CHRYSLER GROUP, LLC

Place special tool (special tool #9948-3, Nut, Special) Nut (1), (special tool #9948-4, Installer, Bushing) Driver (2), (special tool #9948-1, Receiver) Receiver (5) and the press the bushing (3) in the axle housing (4).
Remove tools and install the upper suspension arm. Refer to ARM, UPPER CONTROL, REMOVAL .
