P0714-Transmission Temperature Sensor Intermittent: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

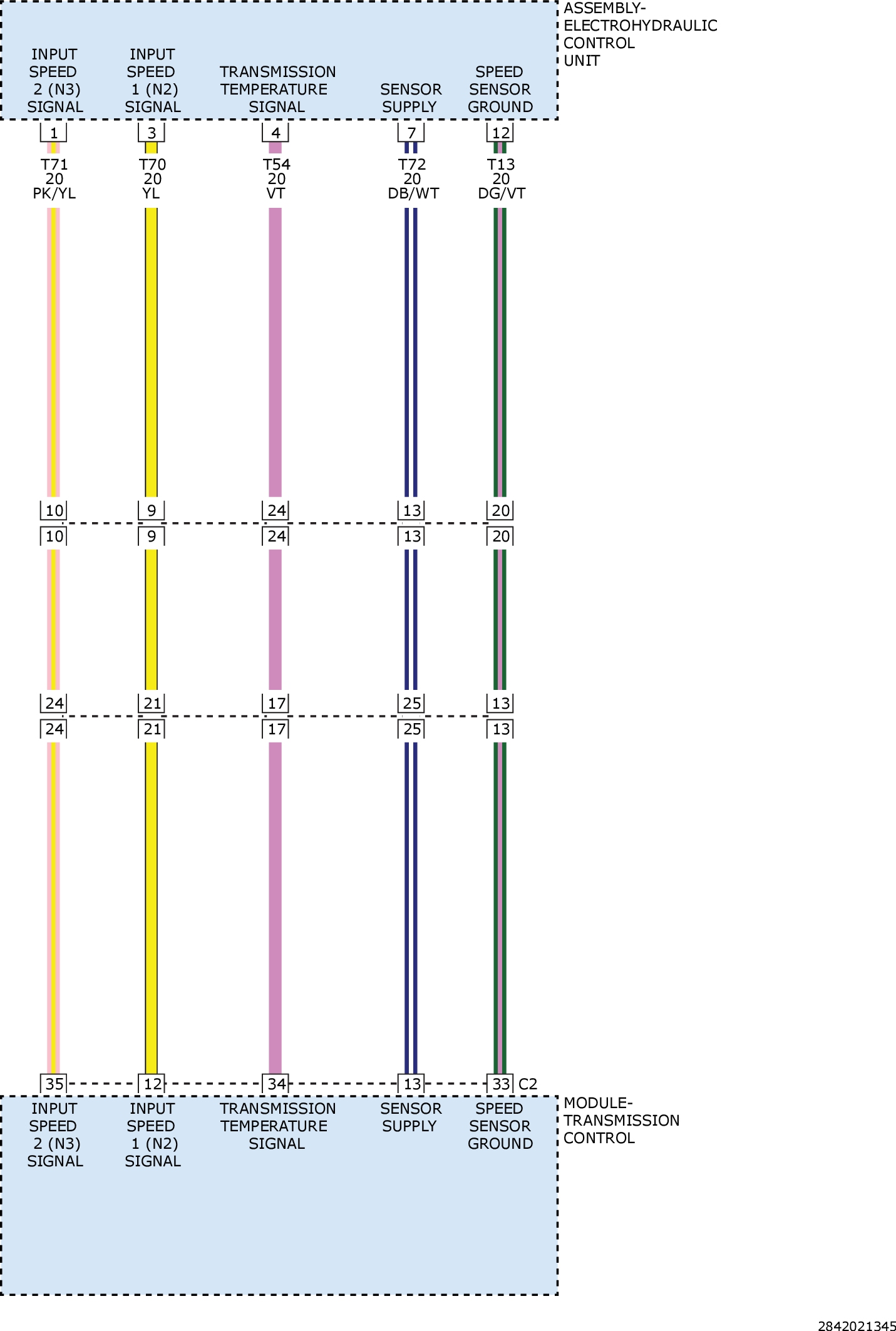

Fig 1: Electrohydraulic Control Unit Assembly Input Speed Signal, Transmission Temperature Signal, Speed Sensor Signal & Ground Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
