P0748-Modulator Pressure Solenoid Circuit: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

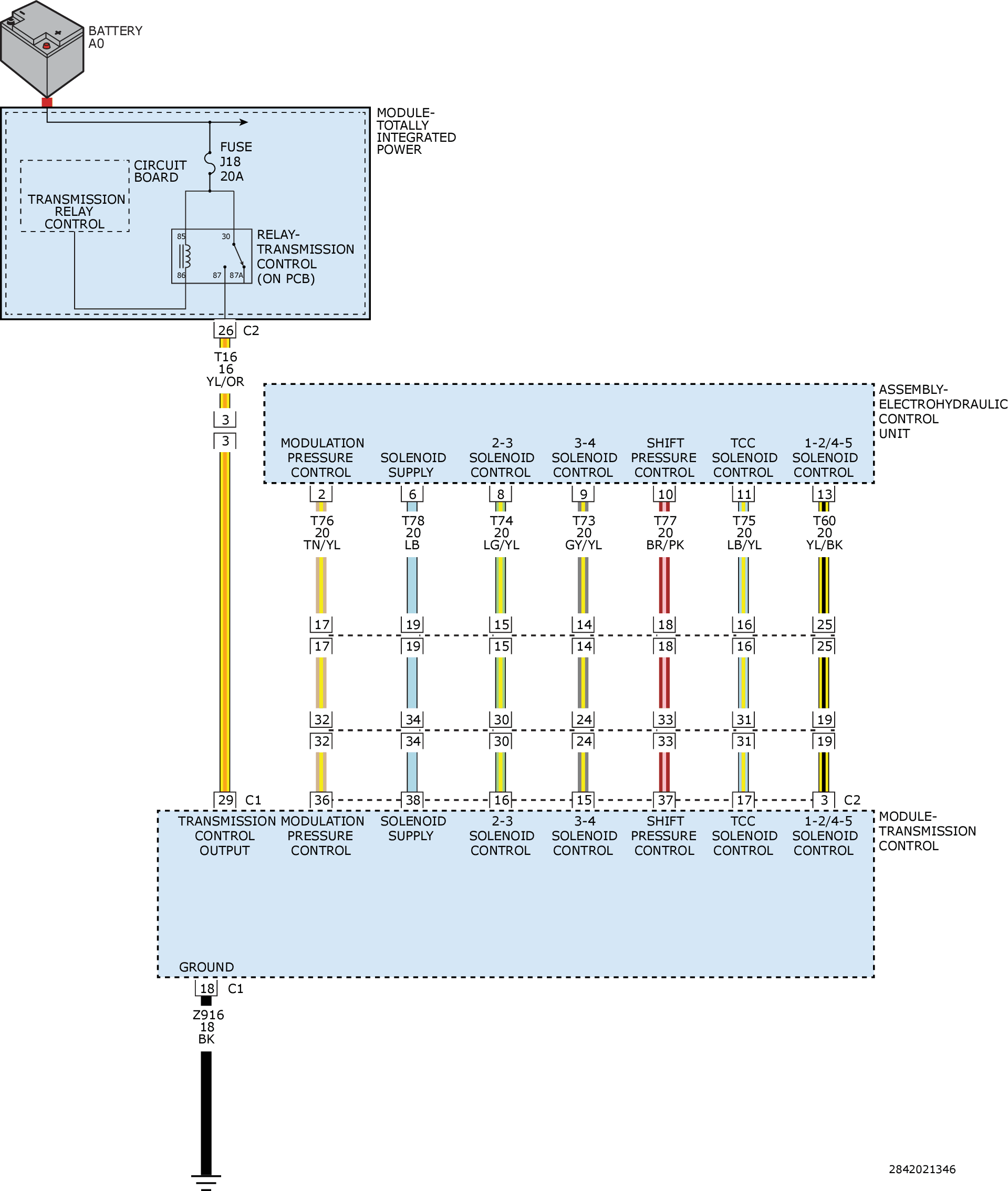

Fig 1: TCM Power Supply & Solenoid Control Circuits

Courtesy of CHRYSLER GROUP, LLC
