2.0L/2.2L Diesel

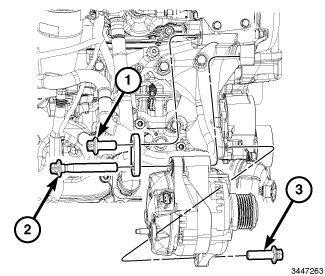

GC0148013Courtesy of CHRYSLER GROUP, LLC
  1. Install the generator and tighten the bolts (2 and 3) to 70 N.m (52 ft. lbs.).
  2. Tighten the bracket bolt (1) to 70 N.m (52 ft. lbs.).

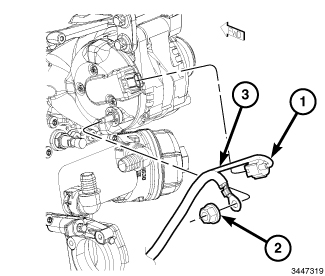

    GC0148014Courtesy of CHRYSLER GROUP, LLC
  3. Connect the generator field connector (1) and position the B+ cable (3) to the generator stud.
  4. Install the B+ nut (2). and tighten the nut to 10 N.m (89 in. lbs.).
    Fig 1: Accessory Drive Belt - 2.0L/2.2L Diesel
    GC0160002Courtesy of CHRYSLER GROUP, LLC
  5. Install the serpentine belt (1). Refer to BELT, SERPENTINE, INSTALLATION .
  6. Install the oil filter with cooler housing assembly. Refer to HOUSING, OIL FILTER, INSTALLATION .
  7. Install the Power Transfer Unit (PTU). Refer to INSTALLATION .
    GC0160102Courtesy of CHRYSLER GROUP, LLC
  8. Install the belly pan (2) and securely tighten the bolts (3).
  9. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
