Throttle Body: Installation: 3.2L

Courtesy of CHRYSLER GROUP, LLC

1. Check the condition of the throttle body-to-intake manifold seal (1). The seal can be reused if not damaged.
2. Clean the mating surfaces of the throttle body and intake manifold.

   Courtesy of CHRYSLER GROUP, LLC

3. Position the throttle body (2) to the intake manifold.
4. Install the throttle body mounting bolts (3) and tighten in a crisscross pattern sequence to the proper torque. Refer to TORQUE SPECIFICATIONS  .
5. Connect the electrical connector (1) to the Electronic Throttle Control (ETC) (2) and secure the ETC harness to the clip (4) on the throttle body.

   Courtesy of CHRYSLER GROUP, LLC

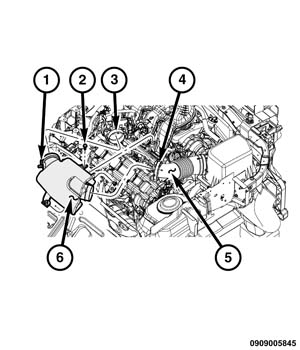

6. Position the air inlet hose (5) onto the resonator housing (6). Hand tighten the clamp (4).
7. Secure the air inlet hose assembly retaining grommet onto the ball stud.
8. Hand tighten the clamp (3) at the throttle body.
9. Connect the Inlet Air Temperature (IAT) sensor electrical connector (1).

   Courtesy of CHRYSLER GROUP, LLC

10. Position the engine cover (1) and secure the retaining grommets onto the ball studs.
11. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
