Home › Jeep › 2017 › Compass Trailhawk › Repair and Diagnosis › Body & Frame › Towing Systems › (Trailer Tow Module - Electrical Diagnostics) - Mp › DTC Troubleshooting › B17AD-13-Rear Left Trailer Turn Lamp Control - Circuit Open › Notes

B17AD-13-Rear Left Trailer Turn Lamp Control - Circuit Open: Notes

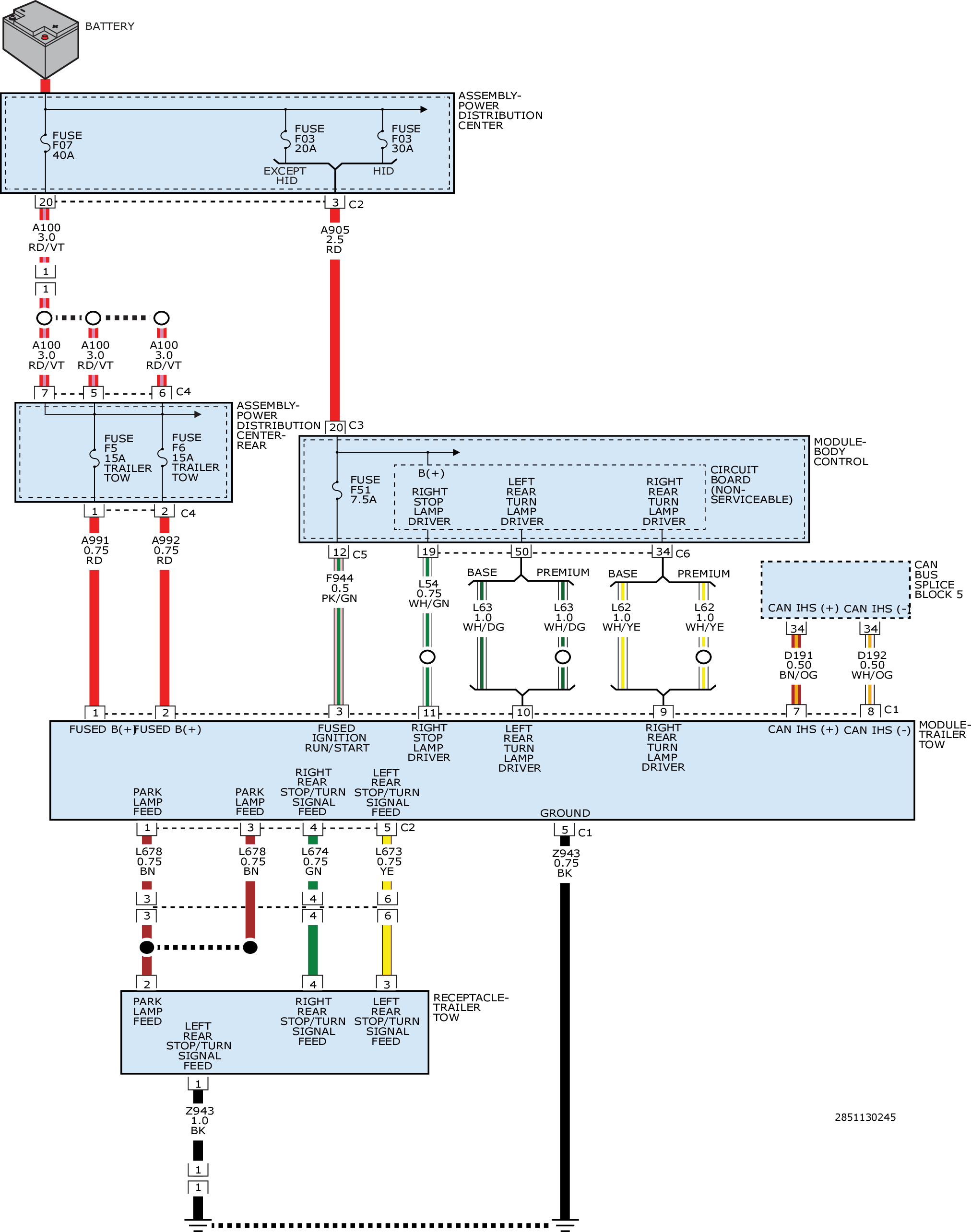

GC0180231Courtesy of CHRYSLER GROUP, LLC
