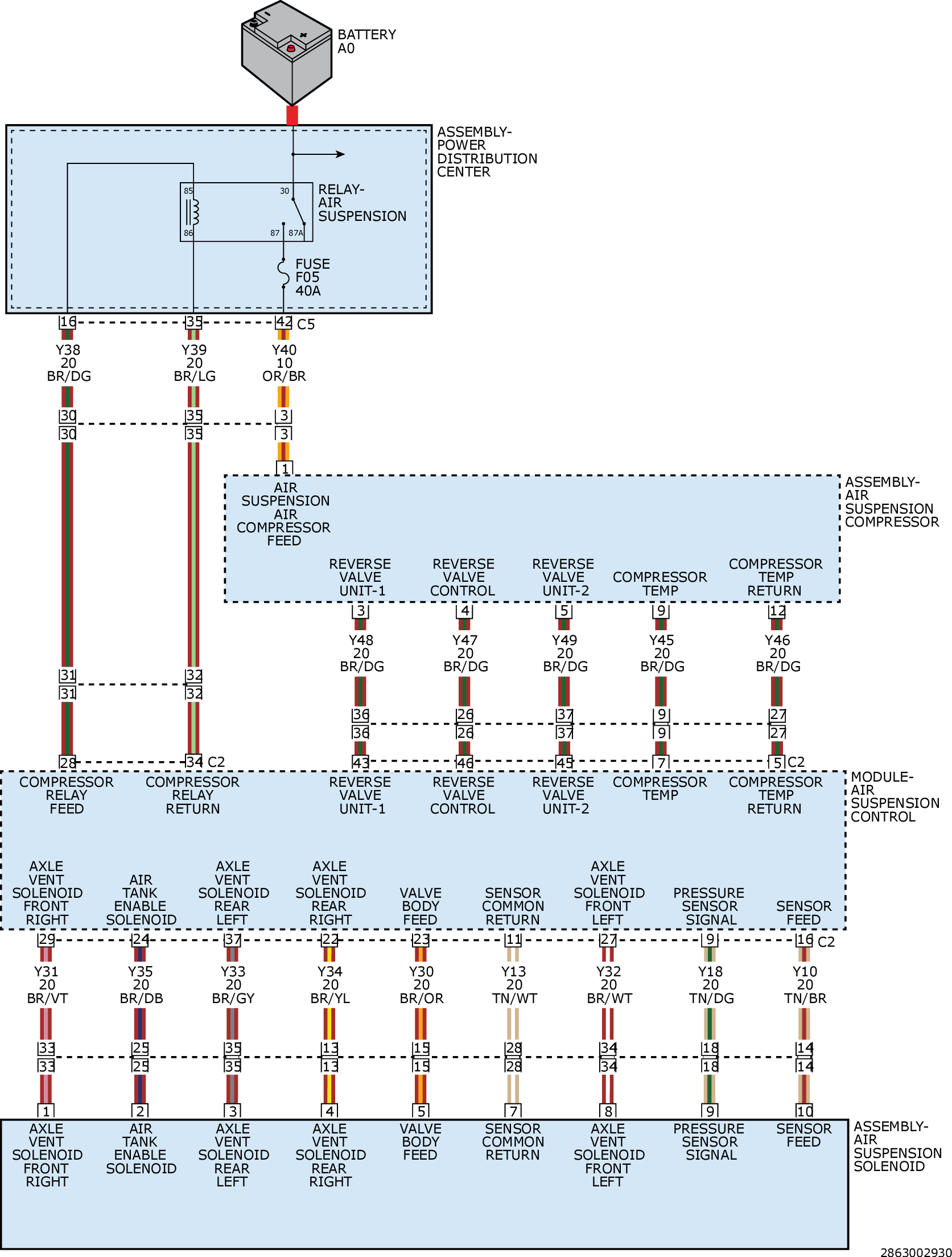

C1562-13-Ride Height Air Pump Control - Circuit Open: Notes

GC0161013Courtesy of CHRYSLER GROUP, LLC
