Module, Blind Spot: Removal: Removal
WARNING: This page is about a different car, the 2015 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the negative cable from the battery.

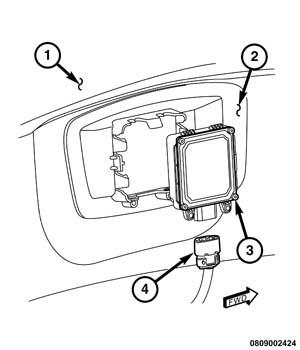

- Remove the rear bumper fascia (1) from the vehicle. Refer to FASCIA, REAR, REMOVAL .
- Disconnect the rear bumper fascia wire harness connector (4) from the Left Blind Spot Sensor (LBSS) or Right Blind Spot Sensor (RBSS) (3) connector receptacle.
- Disengage the latch tabs of the BSM sensor mounting bracket (2) and pull the LBSS or RBSS out of the bracket.
