BCM Connectors And Fasteners

WARNING: This page is about a different car, the 2015 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

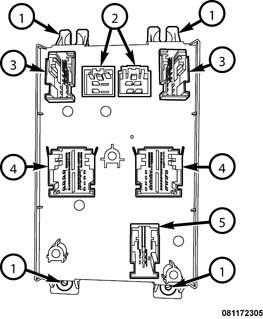

Fig 1: BCM Connectors & Fasteners

Courtesy of CHRYSLER GROUP, LLC

Location	Component
1	Fasteners
2	Power Connections
3	Underhood Connections
4	Body Connections
5	Instrument Panel Connection
